The Ziamatic QUIC-SWING Flip-Down 180° SCBA Bracket is a compartment-mounted SCBA storage system designed to allow firefighters to safely and comfortably don breathing apparatus from a standing position. Ideal for moving first-attack SCBAs outside the crew cab, the system provides convenient access to compartment-stored air packs while helping reduce firefighter exposure to harmful contaminants.

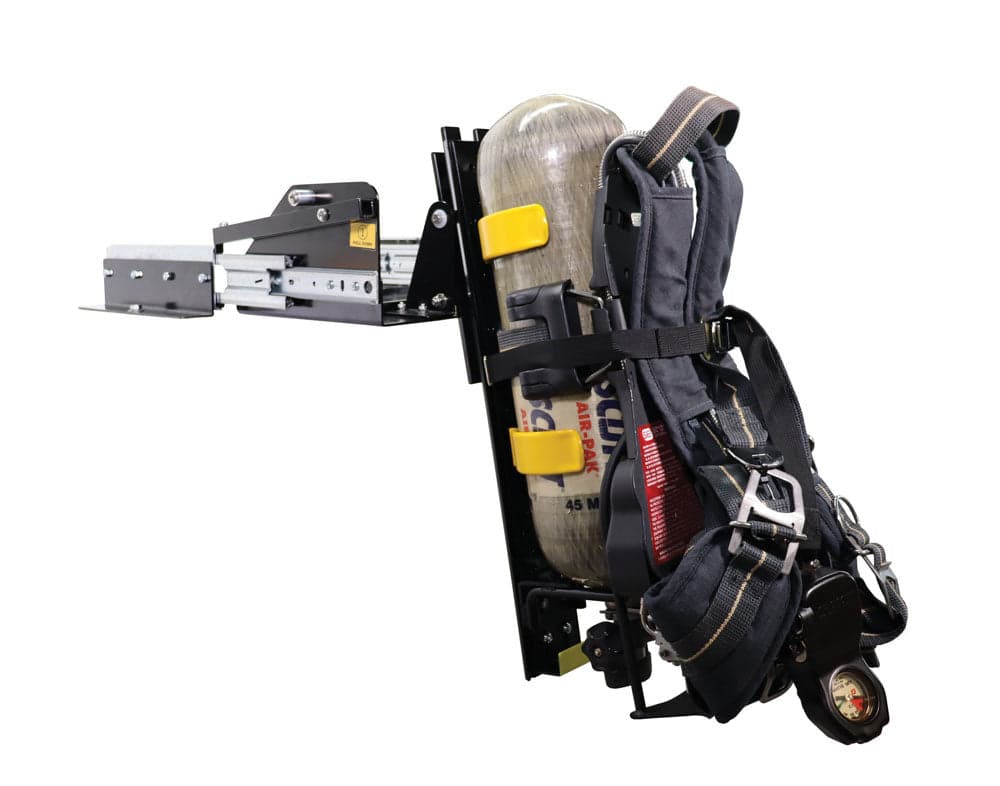

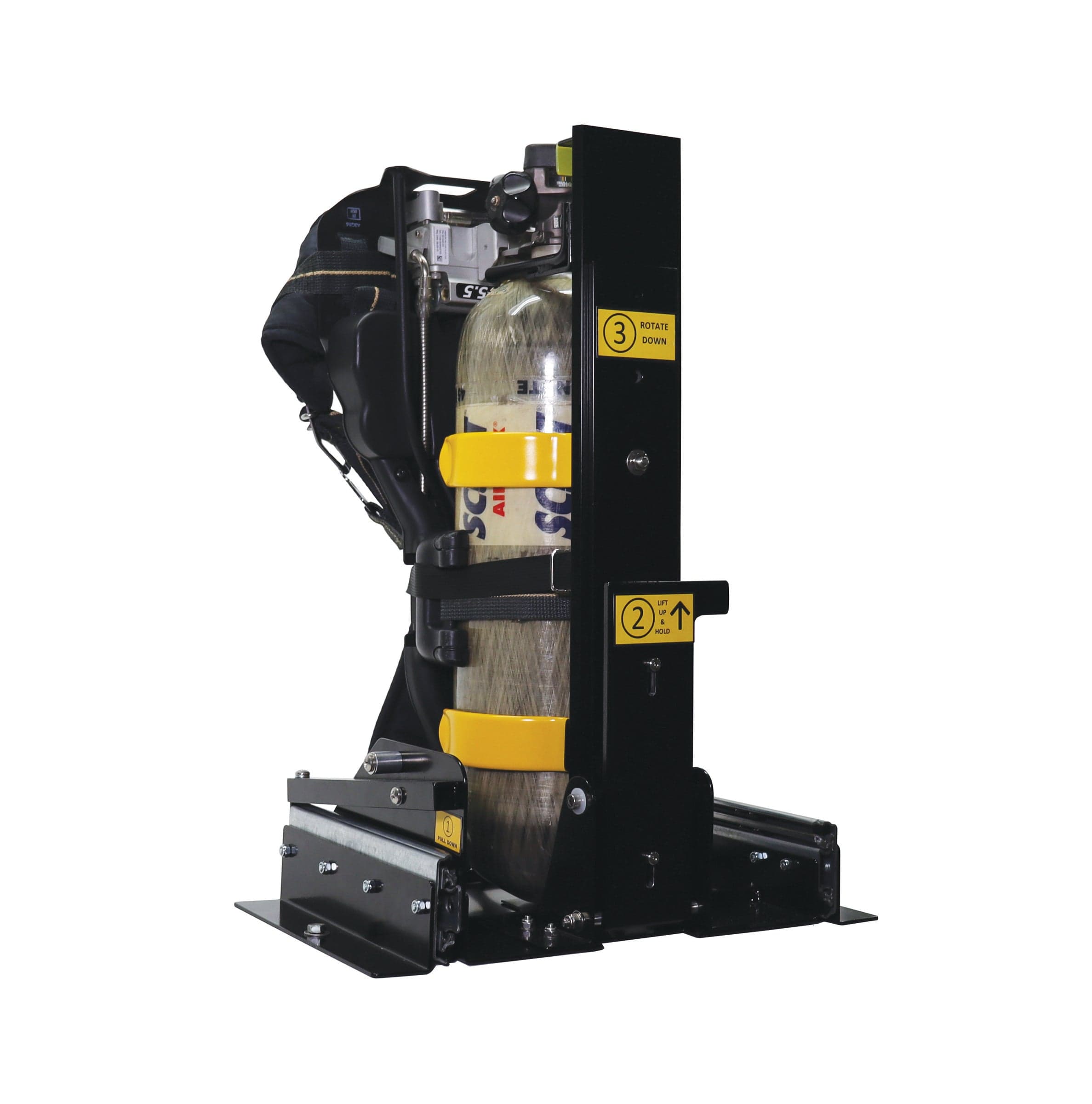

The bracket slides outward over the compartment lip and then flips end-over-end, lowering the SCBA to a convenient donning height. Storing the SCBA facing the rear of the compartment helps protect straps and hoses from being caught or damaged by the compartment door. A tray lock and backplate lock secure the assembly during storage, while spring clips and a positive holding strap keep the SCBA firmly retained. The design also reduces the need to reach overhead for a heavy air pack and makes routine SCBA and harness inspections easier.
Features
• Slides outward over the compartment lip for easy access
• Flips 180° end-over-end to lower the SCBA to a convenient donning height
• Allows SCBA to be donned from a comfortable standing position
• Ideal for storing first-attack SCBAs outside the crew cab
• Helps reduce firefighter exposure to harmful contaminants
• Rear-facing SCBA storage helps protect straps and hoses from compartment doors
• Tray lock and backplate lock securely hold the assembly in place
• Spring clips help securely retain the SCBA
• Positive holding strap provides additional SCBA retention
• Helps reduce strain associated with reaching overhead for heavy SCBA
• Provides easier access for SCBA and harness inspection
• Available for 30-minute and 45-minute 4500 PSI cylinders
• Available without an SCBA bracket
Specifications
• Manufacturer: Ziamatic
• Product Type: Flip-Down 180° SCBA Bracket
• Minimum Compartment Space: 24-1/2" H x 12" D
• SCBA Valve Lowering Distance: 14-1/2" from Compartment Shelf
• Approximate Harness Extension: 21" from Apparatus Sidewall
• 30-Minute 4500 PSI Cylinder: Model QS-FD-180-5
• 45-Minute 4500 PSI Cylinder: Model QS-FD-180-6
• Unit Less SCBA Bracket: Model QS-FD-180-LB
