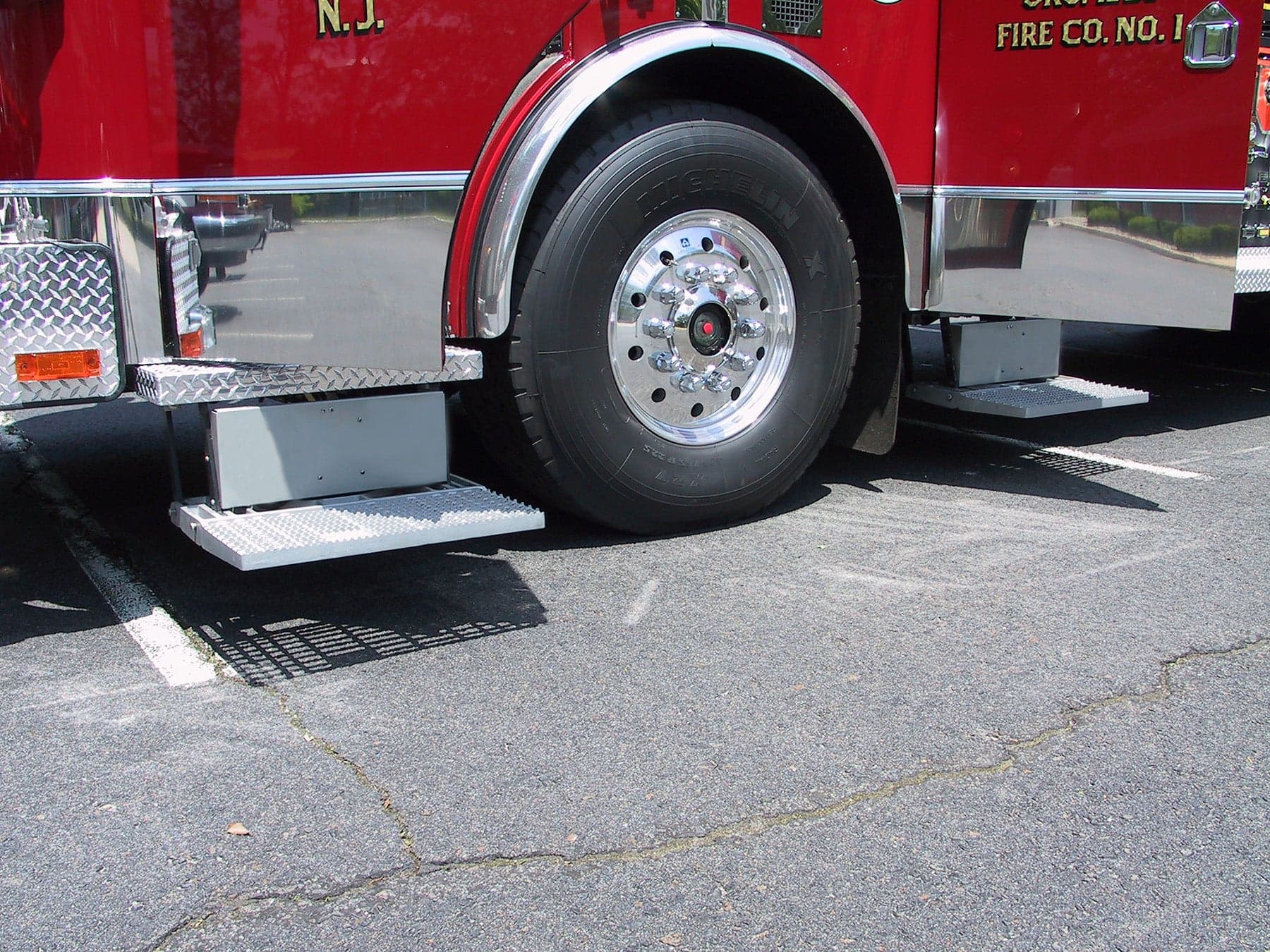

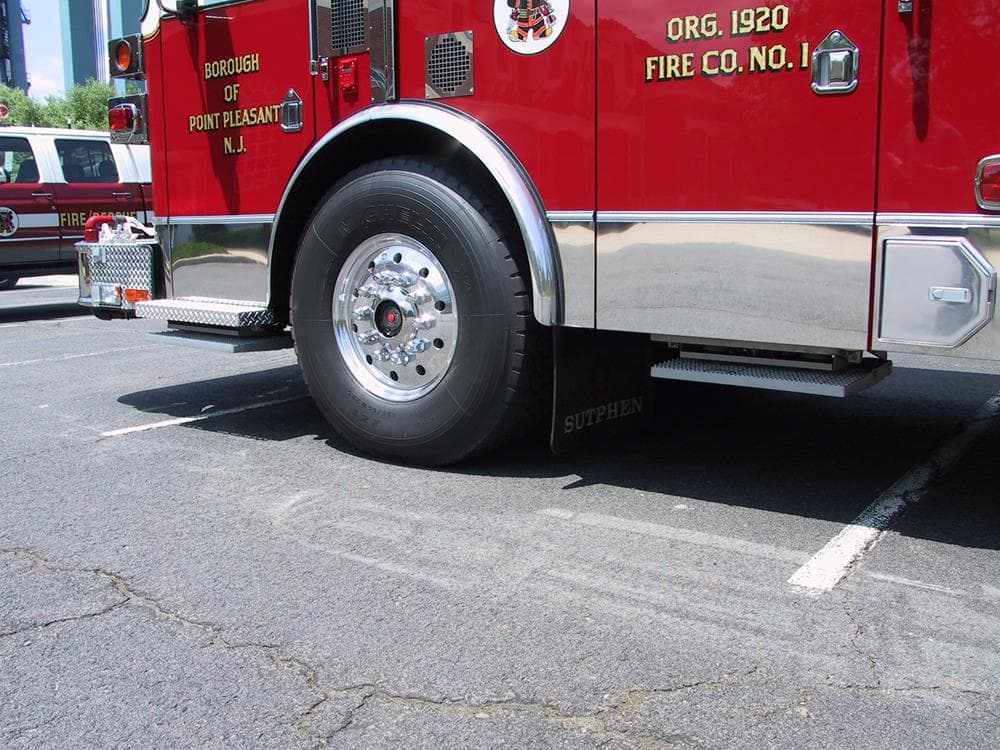

The Retractable Vehicle Step - 10-1/2" Drop is a heavy-duty powered step designed to provide safe, convenient access to fire apparatus and other emergency vehicles. Its large non-skid stepping surface and 10-1/2" drop provide a stable platform for personnel while maintaining a compact profile when retracted.
Powered by a 12V electric actuator, the step features a patented in-line locking mechanism that holds it rigidly in place. It can be wired into the vehicle's door interlock system to automatically extend when the door opens and retract when the door closes. A self-contained, solid-state polarity-reversing motor controller simplifies wiring and provides a more "plug-and-play" installation. The step also stops when it senses resistance or an obstacle in its path, helping reduce the risk of injury and property damage.
Features
• Large stepping surface ideal for fire apparatus
• Powered by a 12V electric actuator
• Patented in-line locking mechanism holds the step rigidly in place
• Can be wired to the vehicle door interlock system
• Automatically extends when the door opens when properly configured
• Automatically retracts when the door closes when properly configured
• Self-contained solid-state polarity-reversing motor controller
• Simplified plug-and-play style installation
• Stops when resistance or an obstacle is detected in its path
• Helps reduce the risk of injury and property damage
• Can be retrofitted onto existing apparatus
• Low-maintenance design
• High-strength aluminum alloy and steel construction
• Powder-coated and plated for corrosion resistance
• Meets NFPA requirements for slip resistance and static load
Specifications
• Manufacturer: Ziamatic
• Product Type: Retractable Vehicle Step
• Operation: Electric
• Voltage: 12V
• Stepping Surface: 24" W x 10-5/8" D
• Stepping Surface: Non-Skid
• Drop Distance: 10-1/2"
• Static Load Capacity: 500 lbs.
• Construction: High-Strength Aluminum Alloy and Steel
• Finish: Powder-Coated and Plated
• Locking System: Patented In-Line Locking Mechanism
• Motor Controller: Self-Contained Solid-State Polarity-Reversing Controller
• Door Interlock Compatibility: Yes
• Obstacle Detection: Stops When Resistance or an Obstacle is Sensed
• Retrofit Compatible: Yes
• Compliance: Meets NFPA Requirements for Slip Resistance and Static Load
