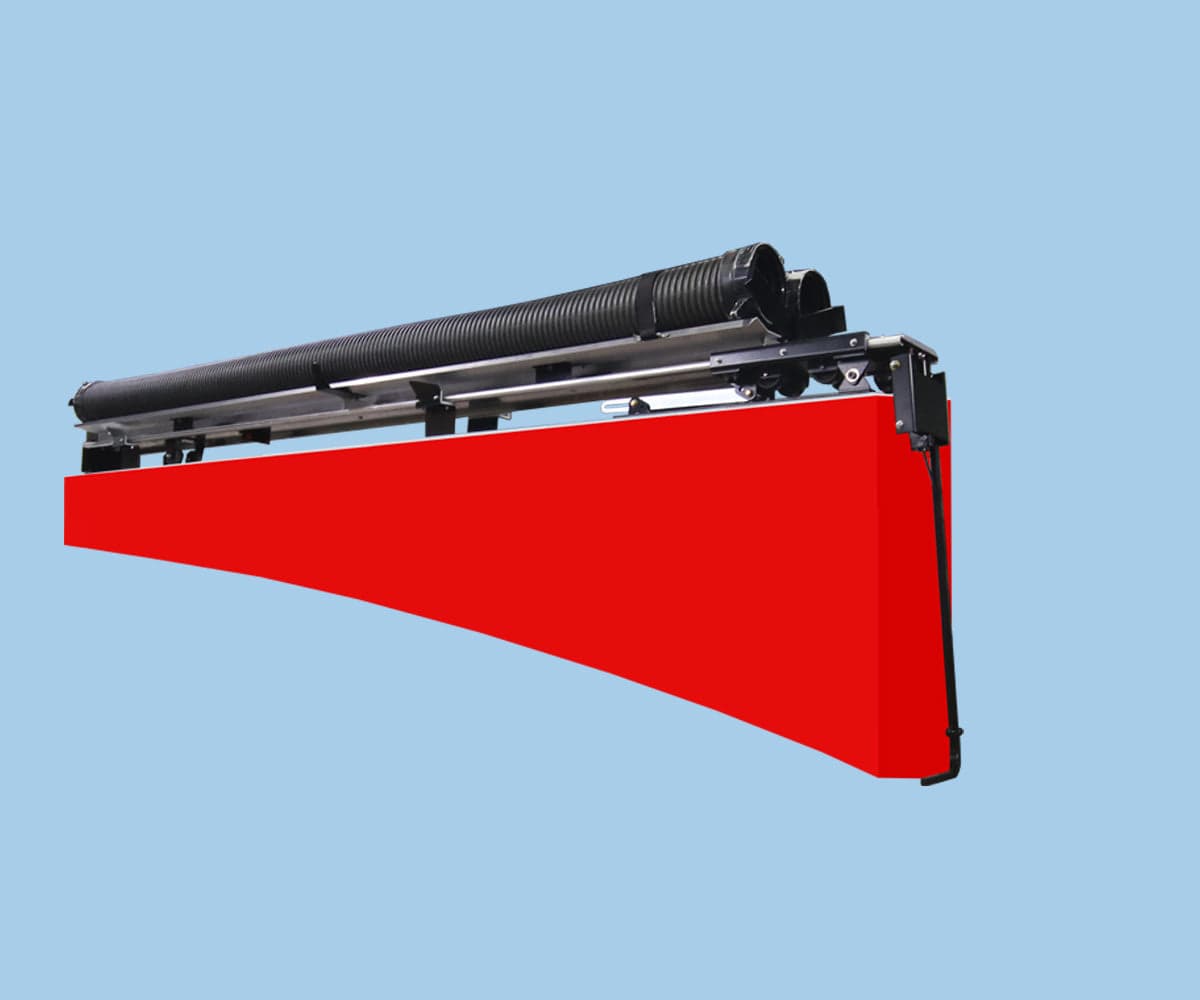

The Ziamatic Side-By-Side Double Hard Sleeve Gantry is designed to provide a safe and efficient way for a single firefighter to retrieve two 10' or 12' hard sleeves stored side-by-side on top of a fire apparatus. By converting what can be a multi-person operation into a one-person task, the gantry is especially beneficial for departments operating with limited personnel.

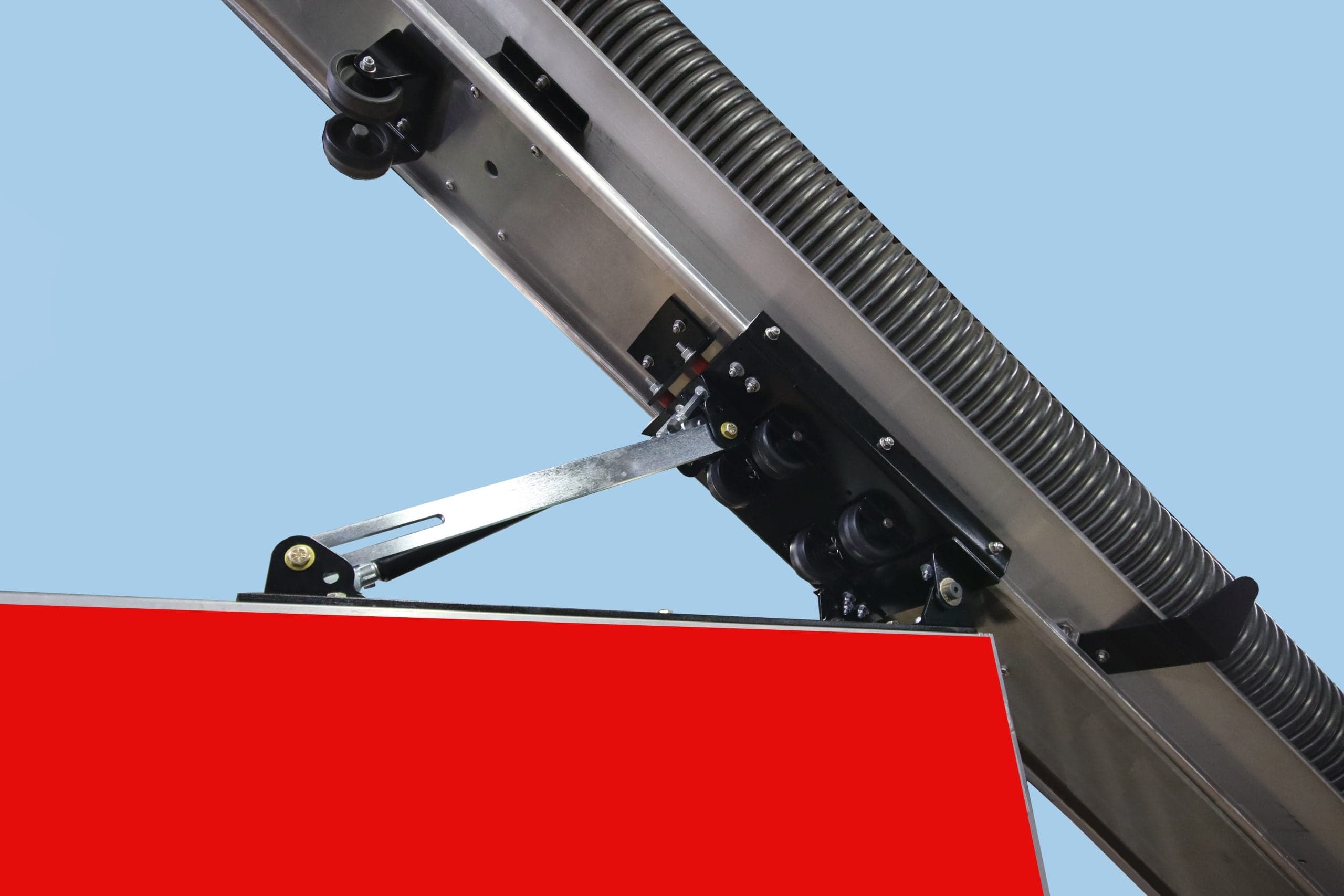

Designed around common mounting areas used for stationary double hard sleeve mounts, the system is well suited for retrofitting existing apparatus or specifying on new truck builds. An integrated damper provides a steady, controlled drop to ground-level access while allowing little to no resistance when raising the gantry back into its stored position. The handle and locking assembly feature a release near the bottom of the handle, allowing personnel to operate the system without leaving the ground.
Features
• Stores two hard sleeves side-by-side
• Available for two 10' or two 12' hard sleeves
• Converts a multi-person retrieval process into a one-person operation
• Slides out and lowers to ground-level access
• Integrated damper provides a steady, controlled lowering motion
• Provides little to no resistance when raising the gantry for storage

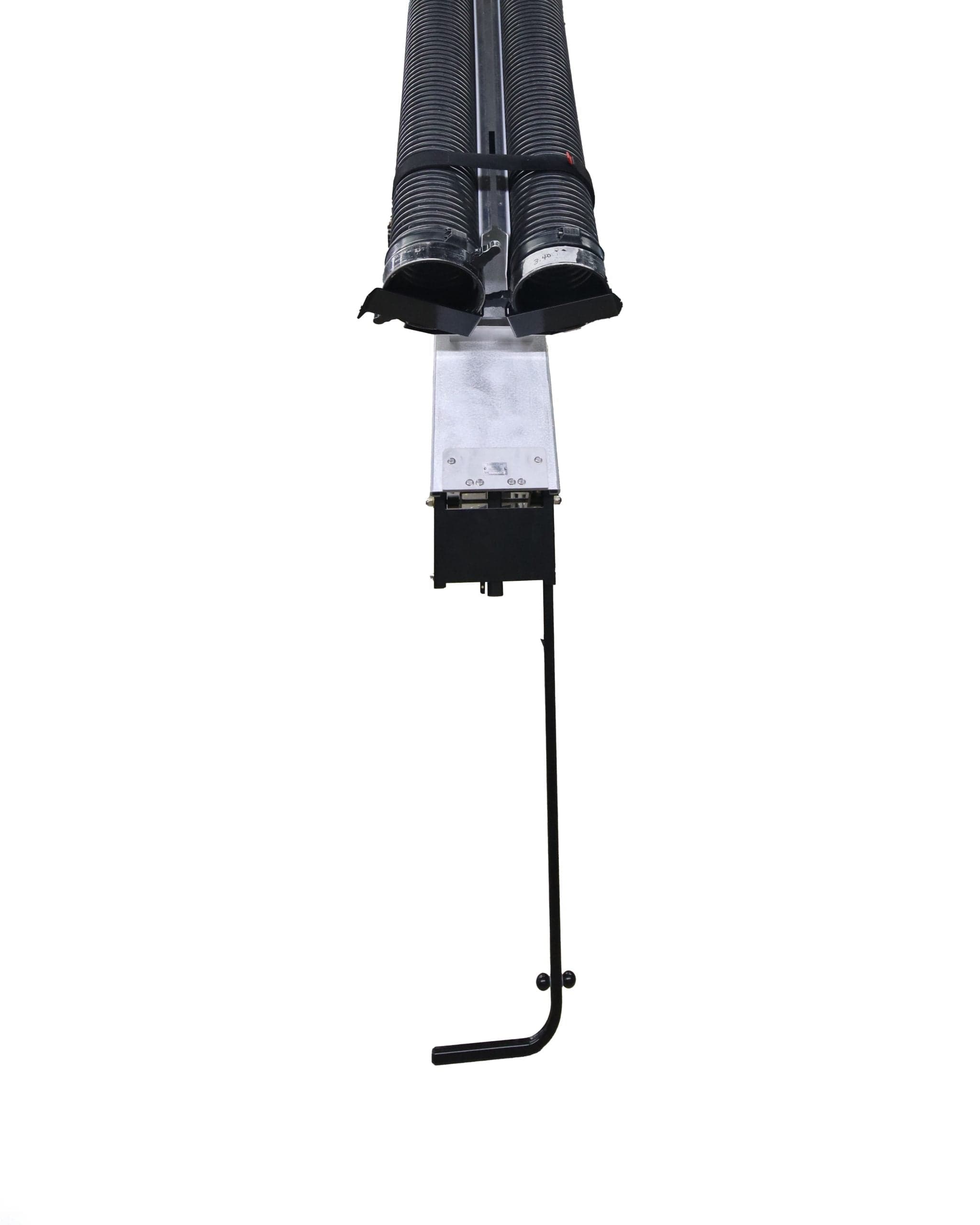

• Handle release is positioned near the bottom for ground-level operation

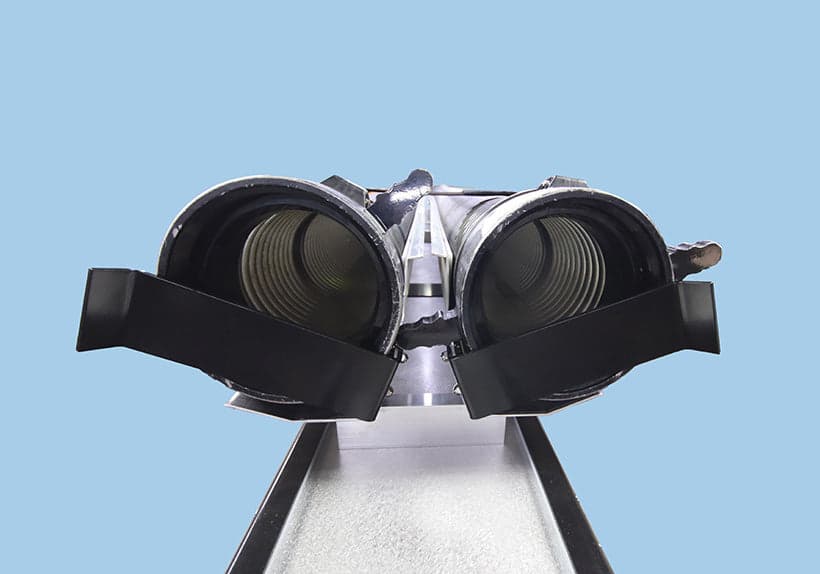

• Hook & loop straps secure hard sleeves in the trays
• Hard sleeves slide from the trays after the straps are released
• Handle and locking assembly automatically locks when returned to the stowed position
• Suitable for retrofitting existing apparatus
• Can be specified for new fire apparatus
• Side-by-side configuration provides organized hard sleeve storage
Specifications
• Manufacturer: Ziamatic
• Product Type: Side-By-Side Double Hard Sleeve Gantry
• Hard Sleeve Capacity: 2
• Hard Sleeve Lengths Available: 10' or 12'
• Configuration: Side-by-Side
• Operation: Slide-Out and Drop-Down
• Retention: Hook & Loop Straps
• HSG-2-10-SXS: Two 10' Hard Sleeves
• HSG-2-12-SXS: Two 12' Hard Sleeves
