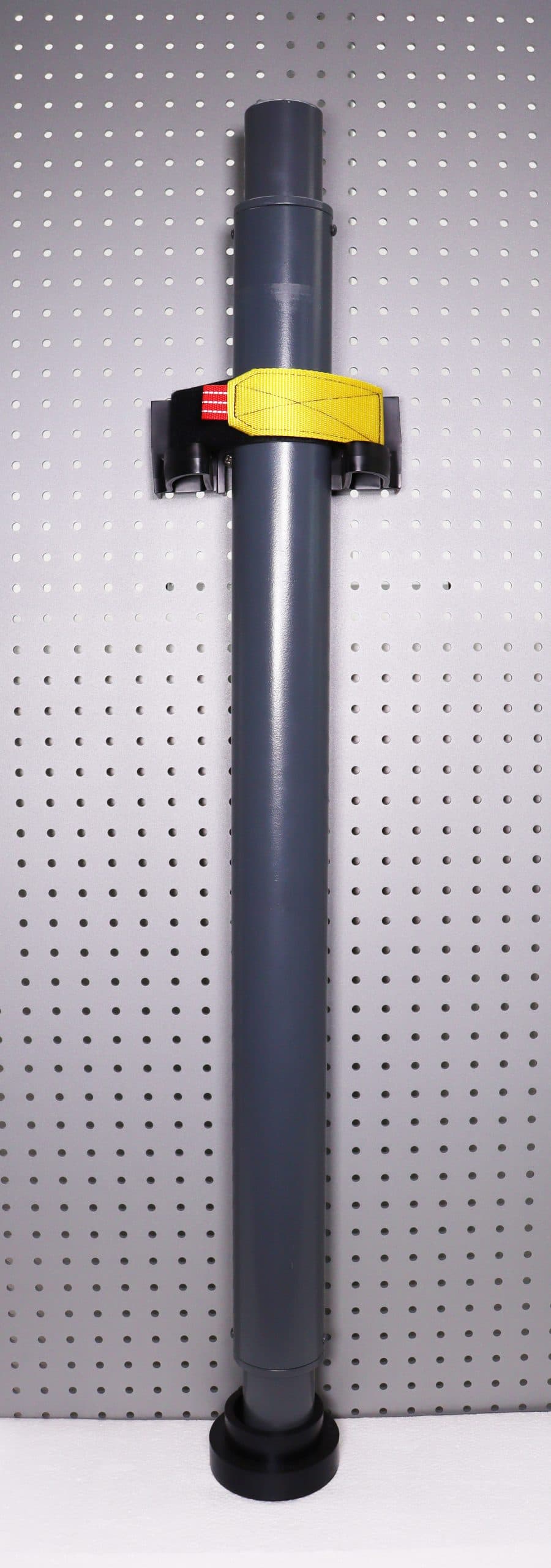

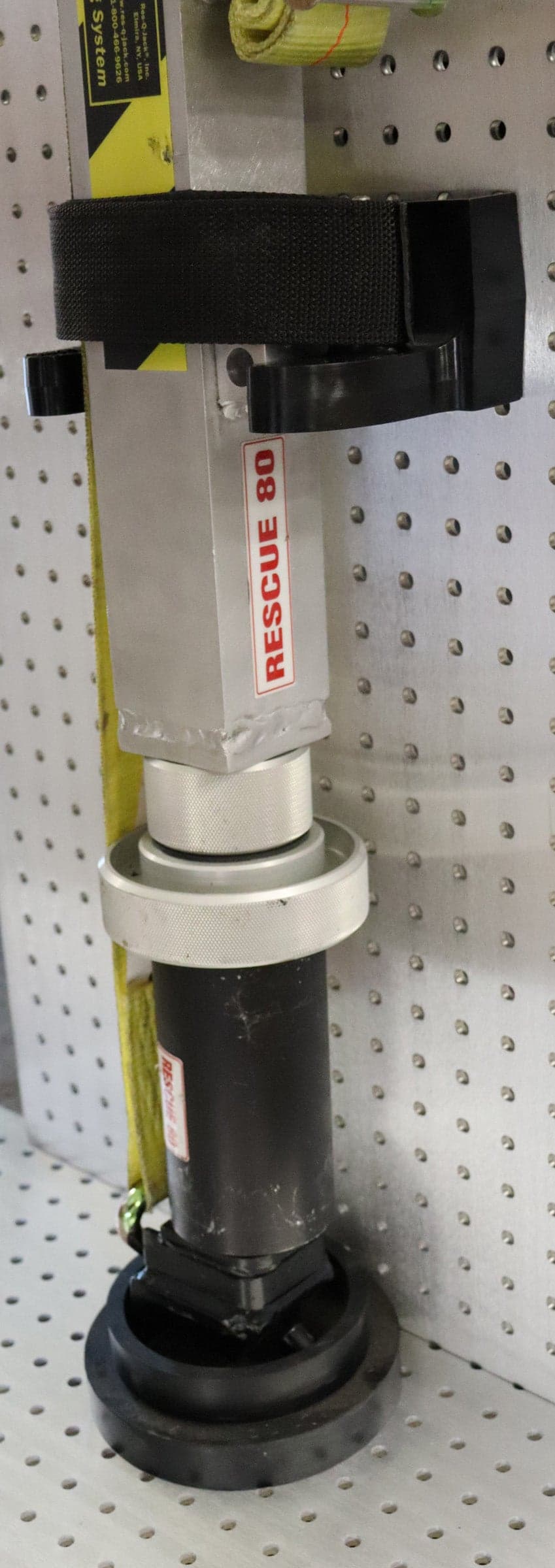

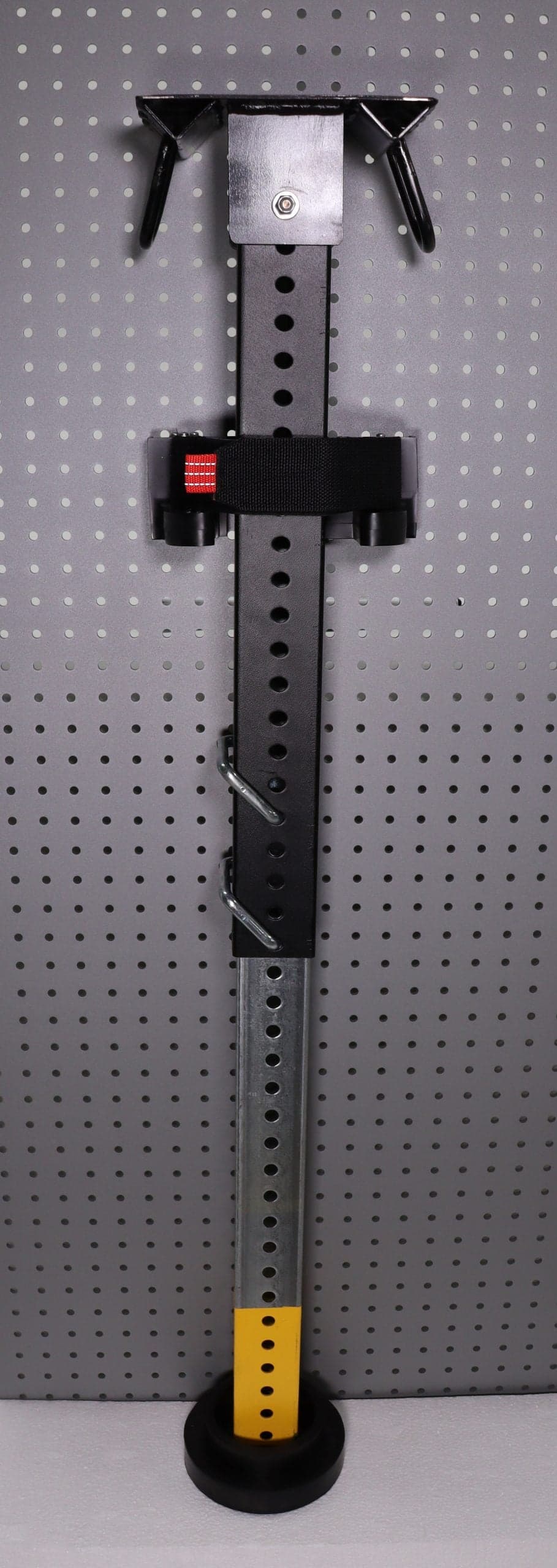

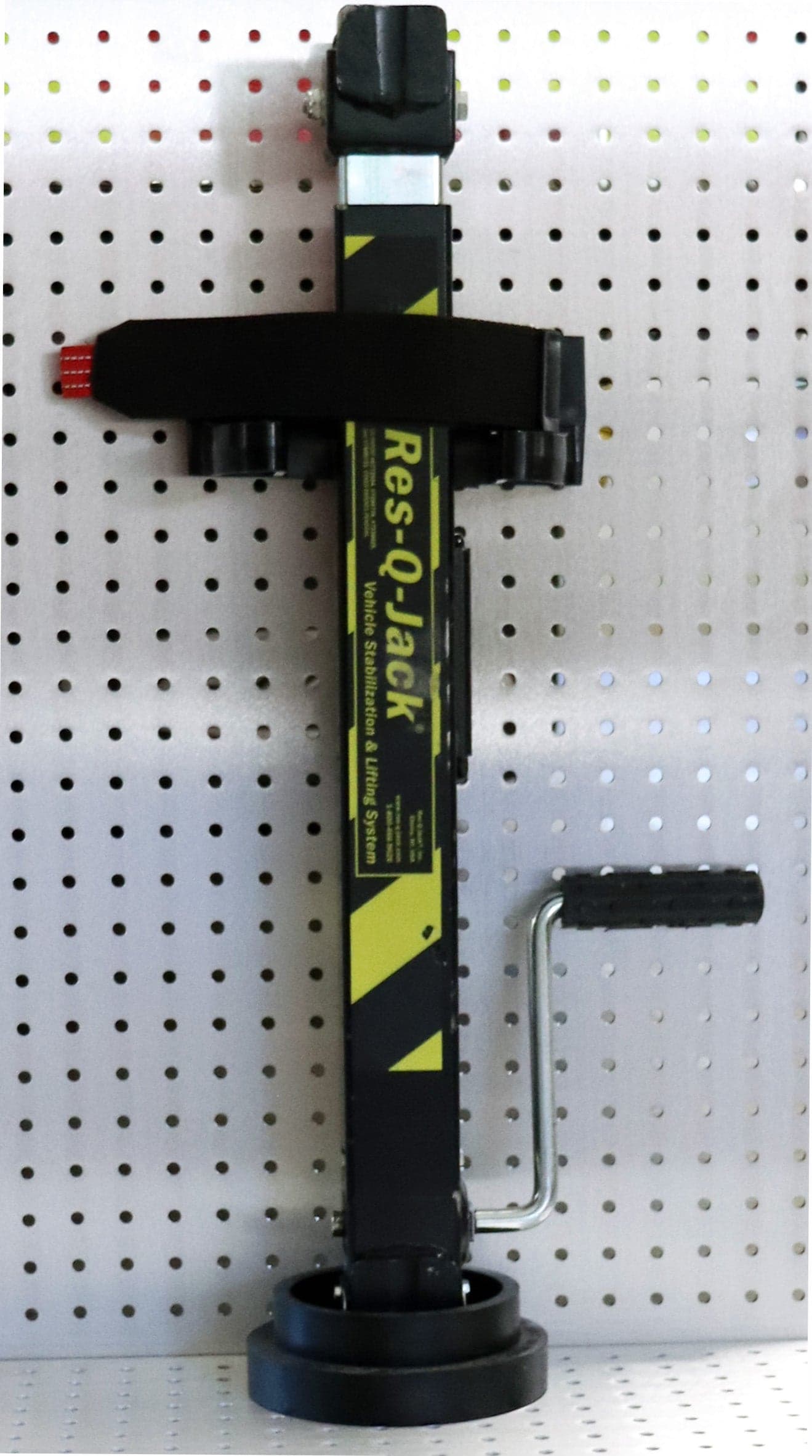

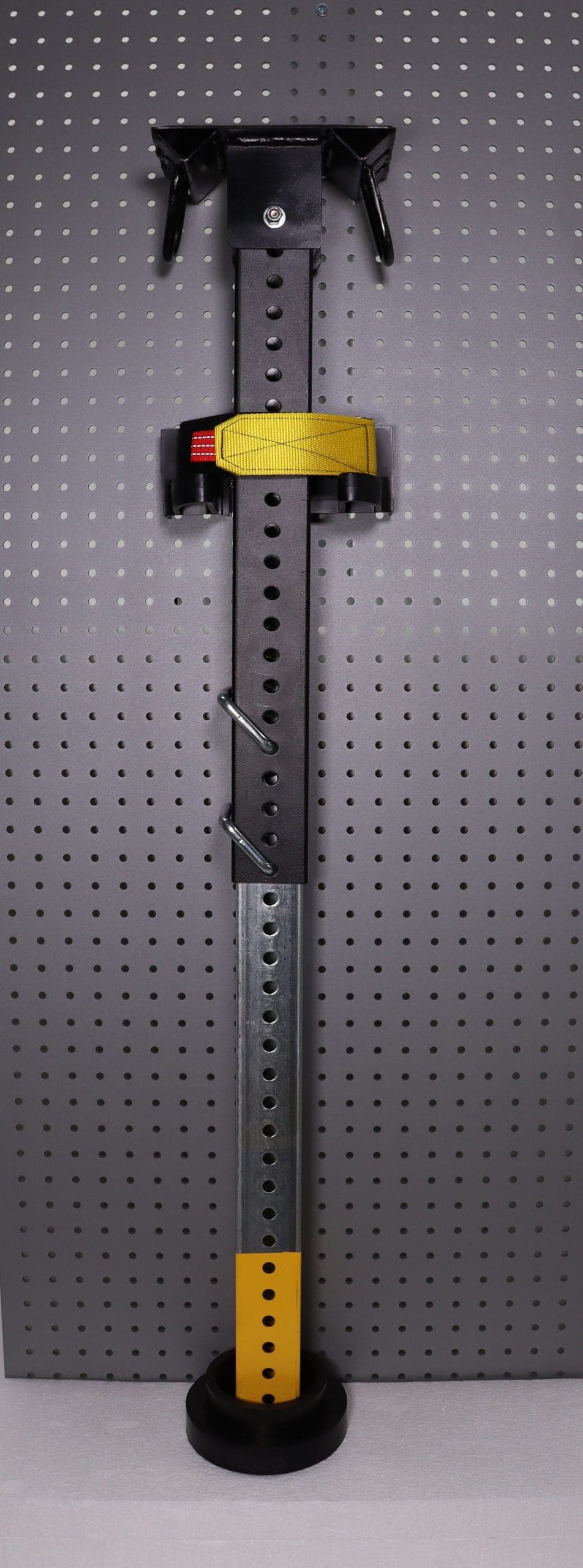

The Ziamatic SURE-GRIP XL Equipment Holders are heavy-duty mounting solutions designed to firmly secure struts, jacks, rams, and other larger equipment on fire apparatus and emergency vehicles. Available with three neoprene base sizes and black or yellow straps, these holders provide versatile options for matching the mount to the size and shape of the equipment being secured.
A heavy-duty, all-weather hook & loop strap conforms to the equipment for a tight, precise grip while allowing fast removal when needed. Dual rubber pads and molded-in support arms provide additional grip and stability, while the moisture-resistant neoprene base supports the equipment without damaging it. The compact design helps maximize compartment space and can be mounted horizontally or vertically.
Features
• Designed to secure struts, jacks, rams, and other larger equipment

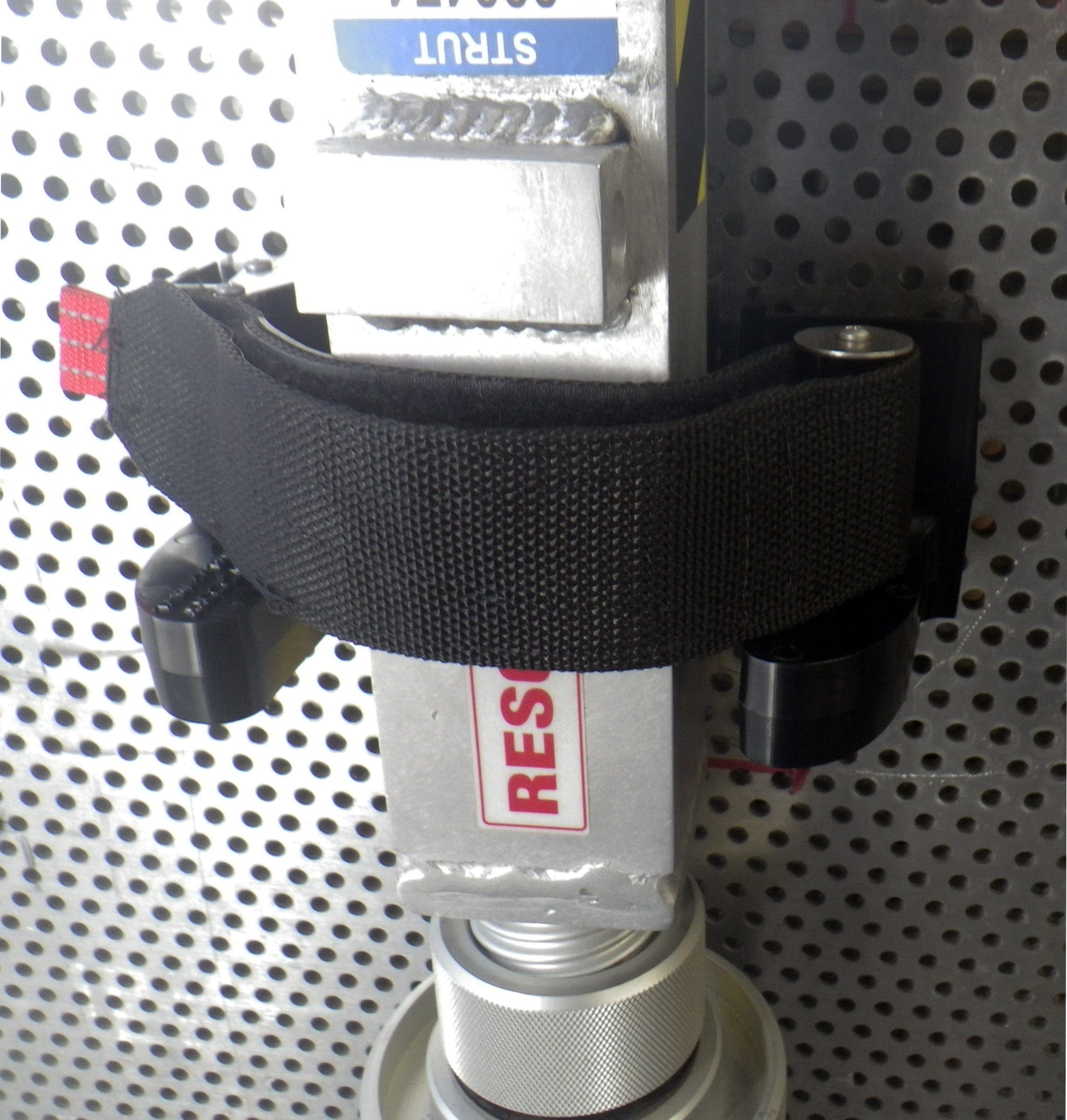

• Heavy-duty, all-weather hook & loop retention strap
• Strap conforms to equipment for a tight, precise grip
• Fast equipment removal by simply unfastening the strap and pulling the equipment free
• Wide strap provides increased surface area for a strong, controlled hold
• Pull-away tensioning provides additional leverage when securing equipment
• Compact design minimizes excess strap and overall footprint
• UV-resistant materials
• Easy to operate with gloved hands
• Dual rubber pads provide additional grip
• Wide opening accommodates a variety of equipment
• Molded-in support arms provide stability while securing equipment

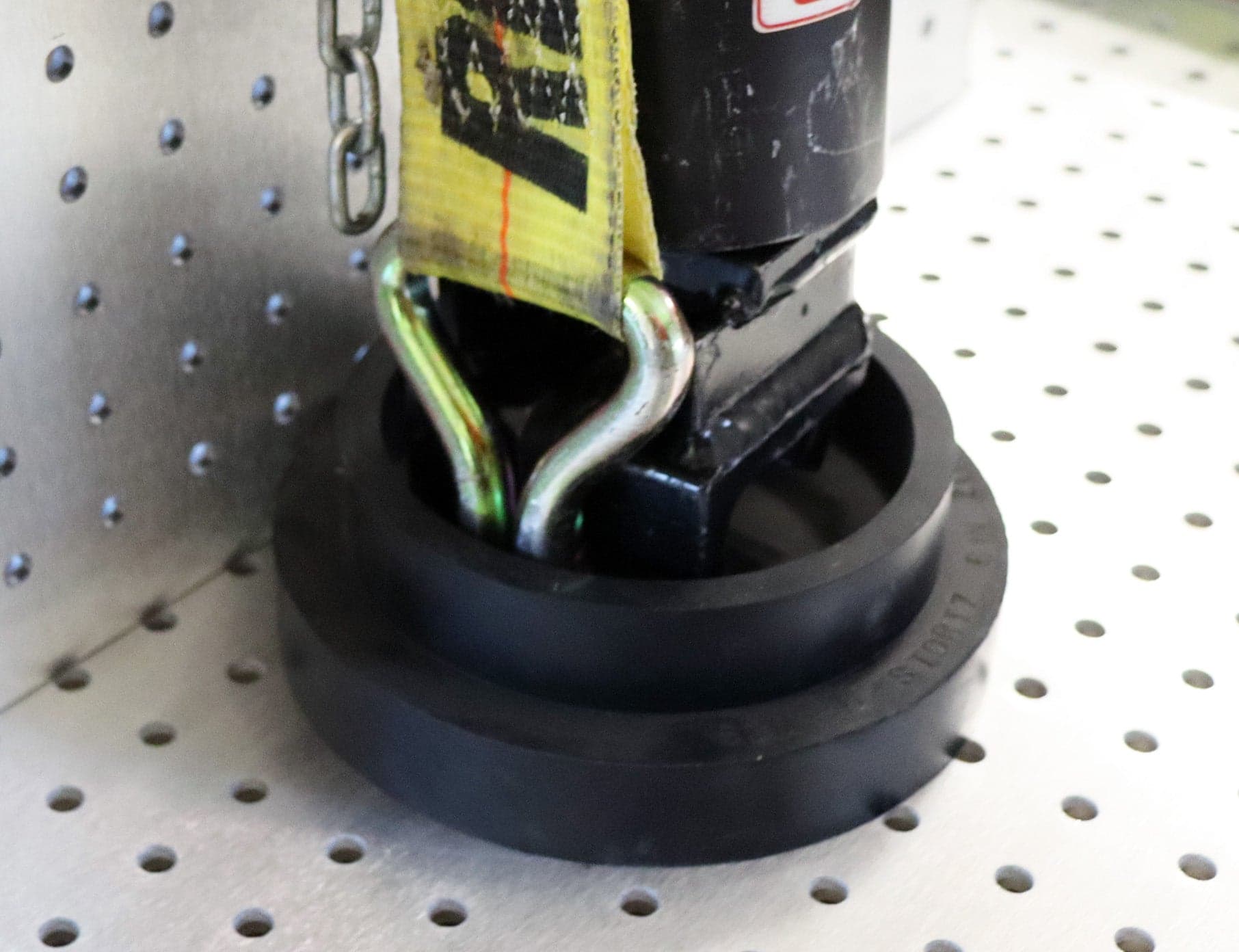

• Moisture-resistant neoprene base helps protect equipment
• Available with small, medium, or large base
• Mounts horizontally or vertically
• NFPA compliant for equipment weighing up to 20 lbs.
• Available with black or yellow strap
Specifications
• Manufacturer: Ziamatic
• Product Type: SURE-GRIP XL Equipment Holder
• Strap Assembly Dimensions: 8" L x 3-1/8" W x 4-5/16" D
• Small Base Dimensions: 4" O.D. x 2-3/4" I.D.
• Medium Base Dimensions: 5" O.D. x 3-5/8" I.D.
• Large Base Dimensions: 6" O.D. x 4-1/4" I.D.
• Equipment Base Material: Moisture-Resistant Neoprene Rubber
• Strap Assembly Base Material: High-Tensile-Strength Plastic
• Strap Material: Nylon
• Strap Width: 1-1/2"
• Strap Type: Heavy-Duty, All-Weather Hook & Loop
• Strap Pad: Rubber
• Mounting Hole Spacing: 1" On Center
• Mounting Orientation: Horizontal or Vertical

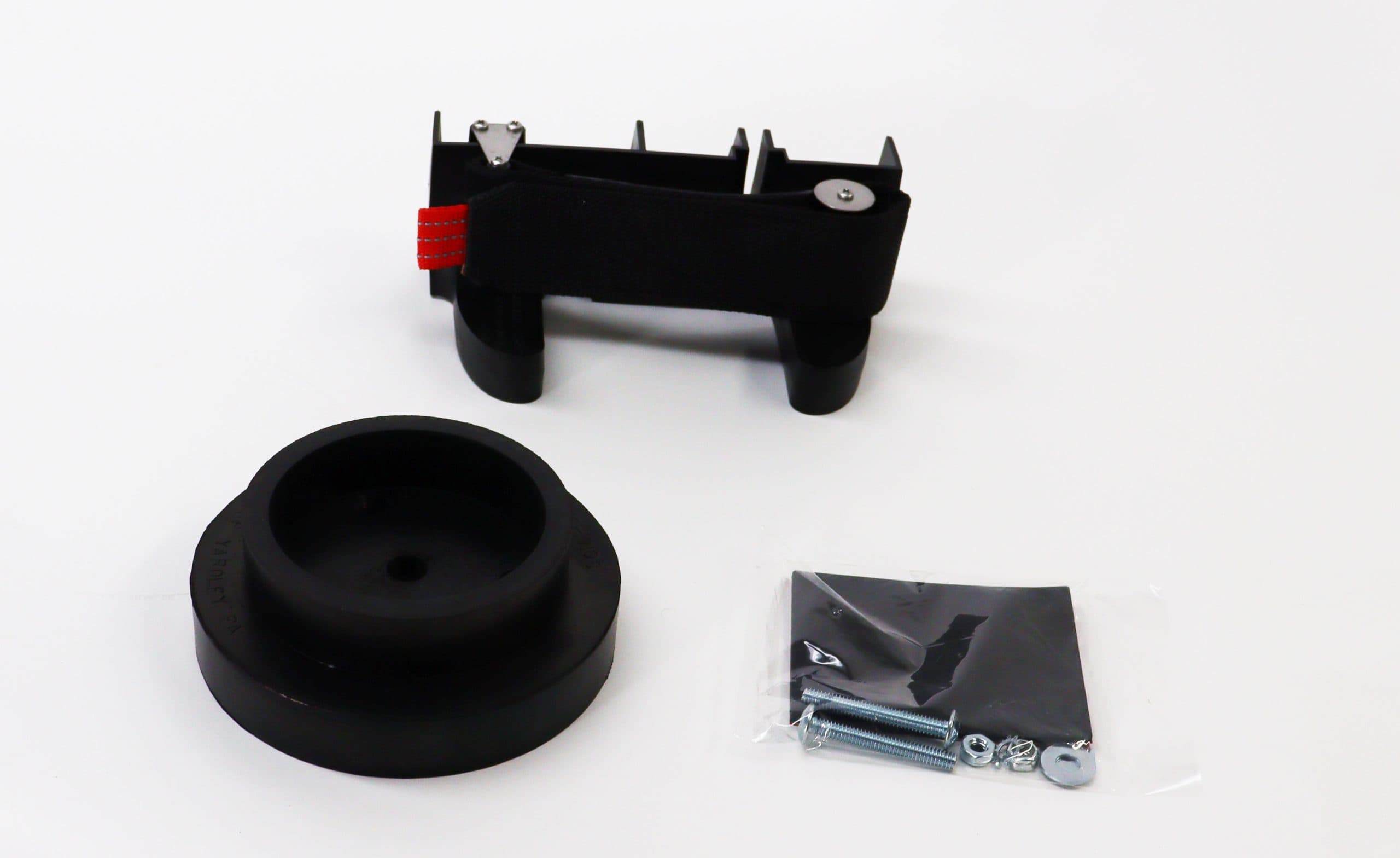

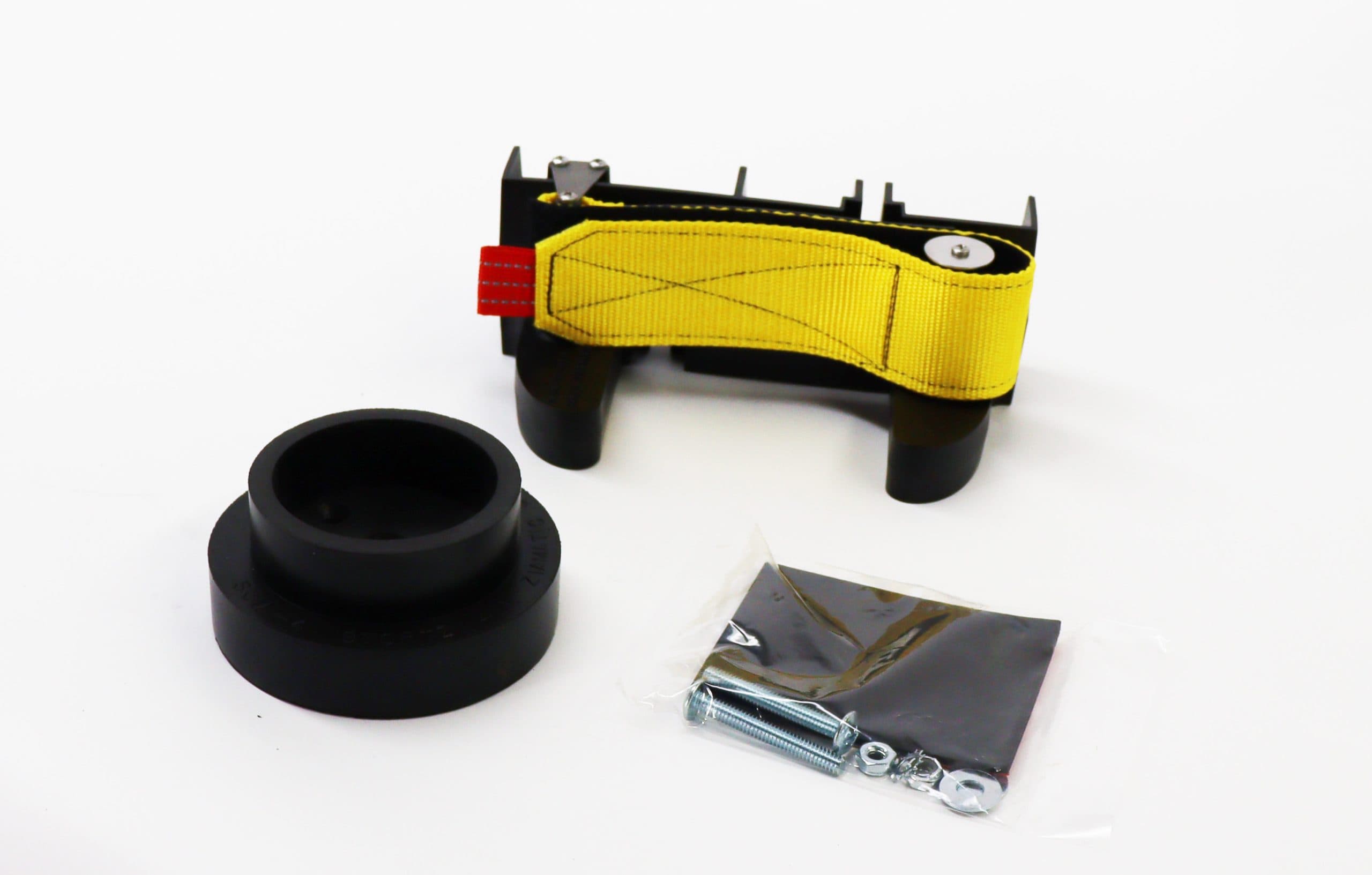

• Mounting Screws Included: 2
• NFPA Compliance: Up to 20 lbs.
• SG-VM-EHS: Small Base, Black Strap
• SG-VM-EHS-Y: Small Base, Yellow Strap
• SG-VM-EHM: Medium Base, Black Strap
• SG-VM-EHM-Y: Medium Base, Yellow Strap
• SG-VM-EHL: Large Base, Black Strap
• SG-VM-EHL-Y: Large Base, Yellow Strap
