The Ziamatic Variable Strut Mounts are heavy-duty storage solutions designed to securely hold two or four 3" round struts against a vertical surface. Built for demanding fire apparatus applications, the system combines rugged upper and lower brackets with wide SURE-GRIP retention straps to provide a strong, secure hold during transport.

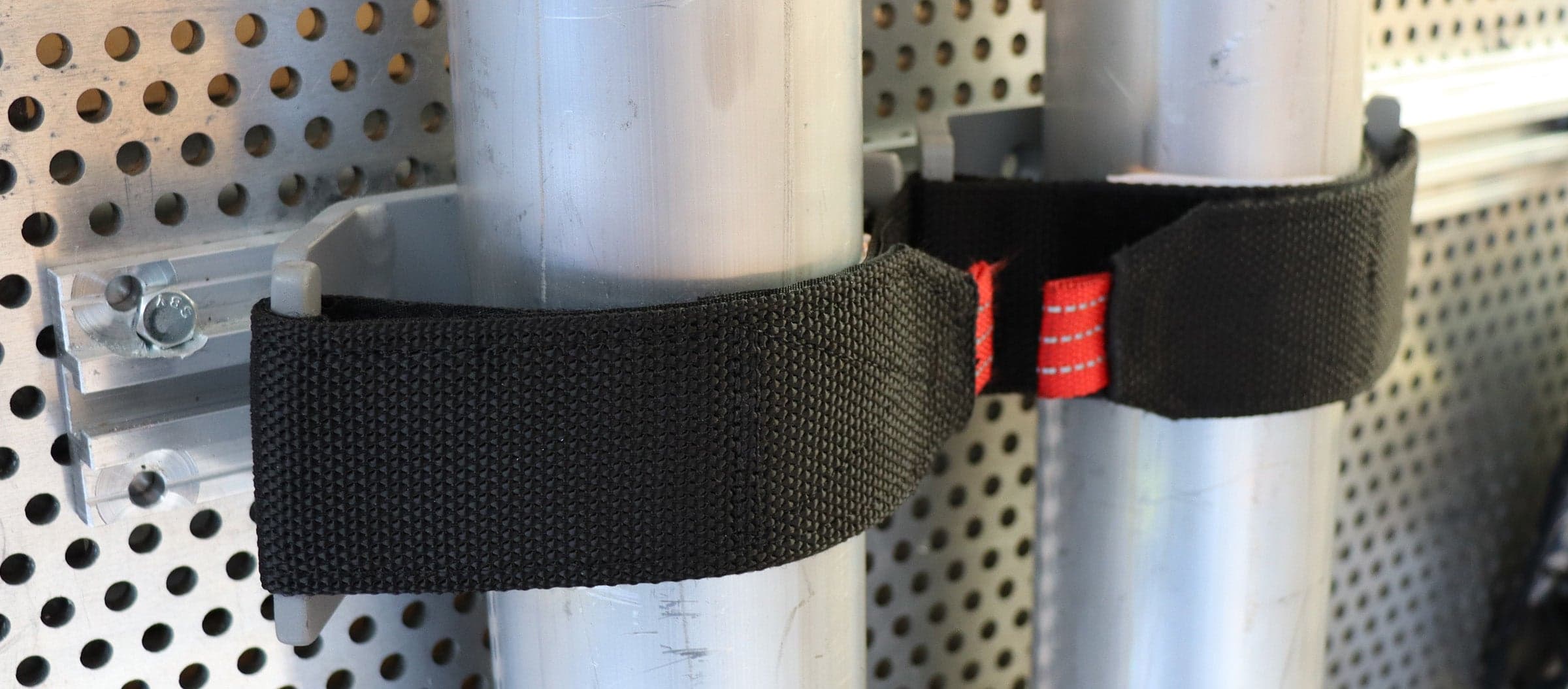

The struts rest in openings in the lower bracket and are secured into the adjustable upper bracket with heavy-duty 2" nylon straps. SURE-GRIP technology provides added leverage when tightening the straps for a stronger, more controlled hold. The lower bracket is specifically designed to support the substantial weight of the struts and withstand repeated stowage and removal, while the included Unistrut channel provides quick and convenient mounting.
Features
• Designed to securely mount two or four 3" round struts
• Holds struts vertically against a mounting surface

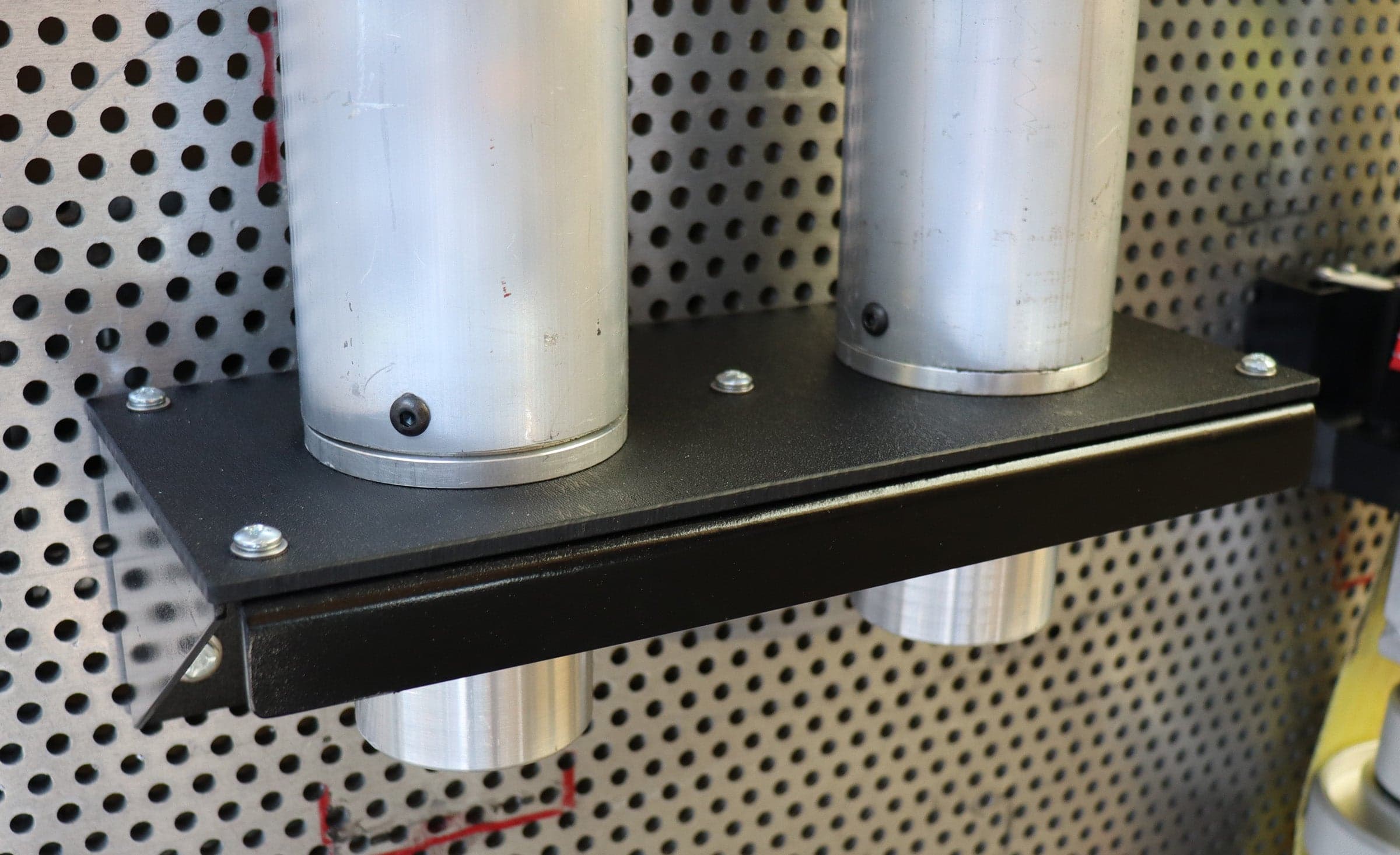

• Struts rest securely in openings in the lower bracket
• Adjustable upper bracket provides secure positioning
• Heavy-duty 2" nylon straps provide increased surface area and holding power
• SURE-GRIP technology provides additional leverage for a tighter hold
• Lower bracket is designed to support substantial strut weight
• Rugged construction withstands repeated stowage and removal
• Includes Unistrut channel for quick and easy mounting
• All-weather, UV-resistant nylon straps
• Hook & loop strap closure
• Available in double and quadruple strut configurations
Specifications
• Manufacturer: Ziamatic
• Product Type: Variable Strut Mount
• Strut Compatibility: 3" Round Struts
• Mounting Orientation: Vertical
• Strap Width: 2"
• Strap Material: All-Weather, UV-Resistant Nylon
• Strap Closure: Hook & Loop
• Upper Bracket Material: Cast Aluminum
• Upper Bracket Finish: Powder-Coated
• Lower Bracket Material: Steel
• Lower Bracket Finish: Powder-Coated
• Lower Bracket Protection: High-Density Polyethylene Plastic Layer
• Unistrut Channel Included: Yes

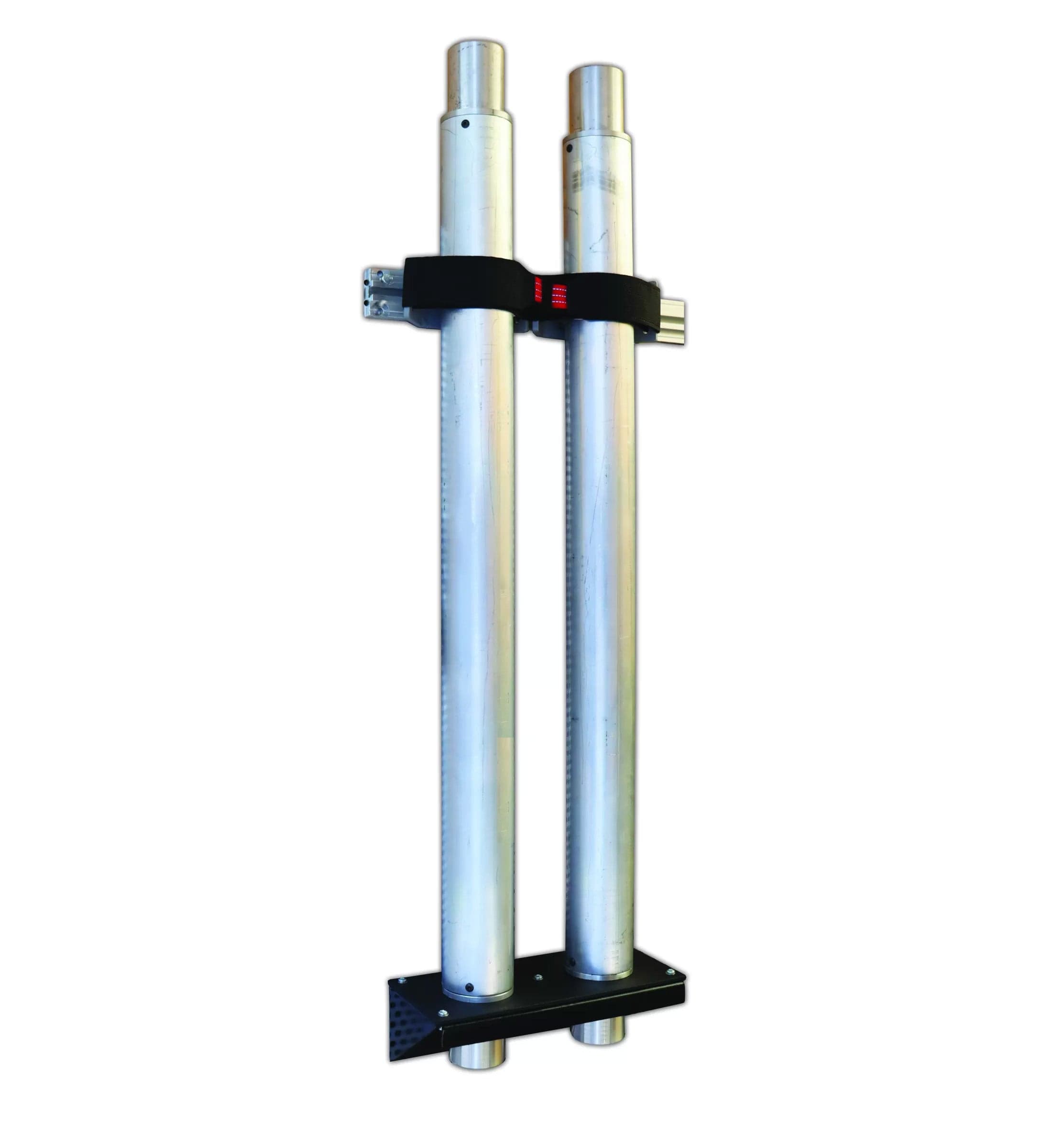

• VM-3RS-D: Double 3" Strut Bracket

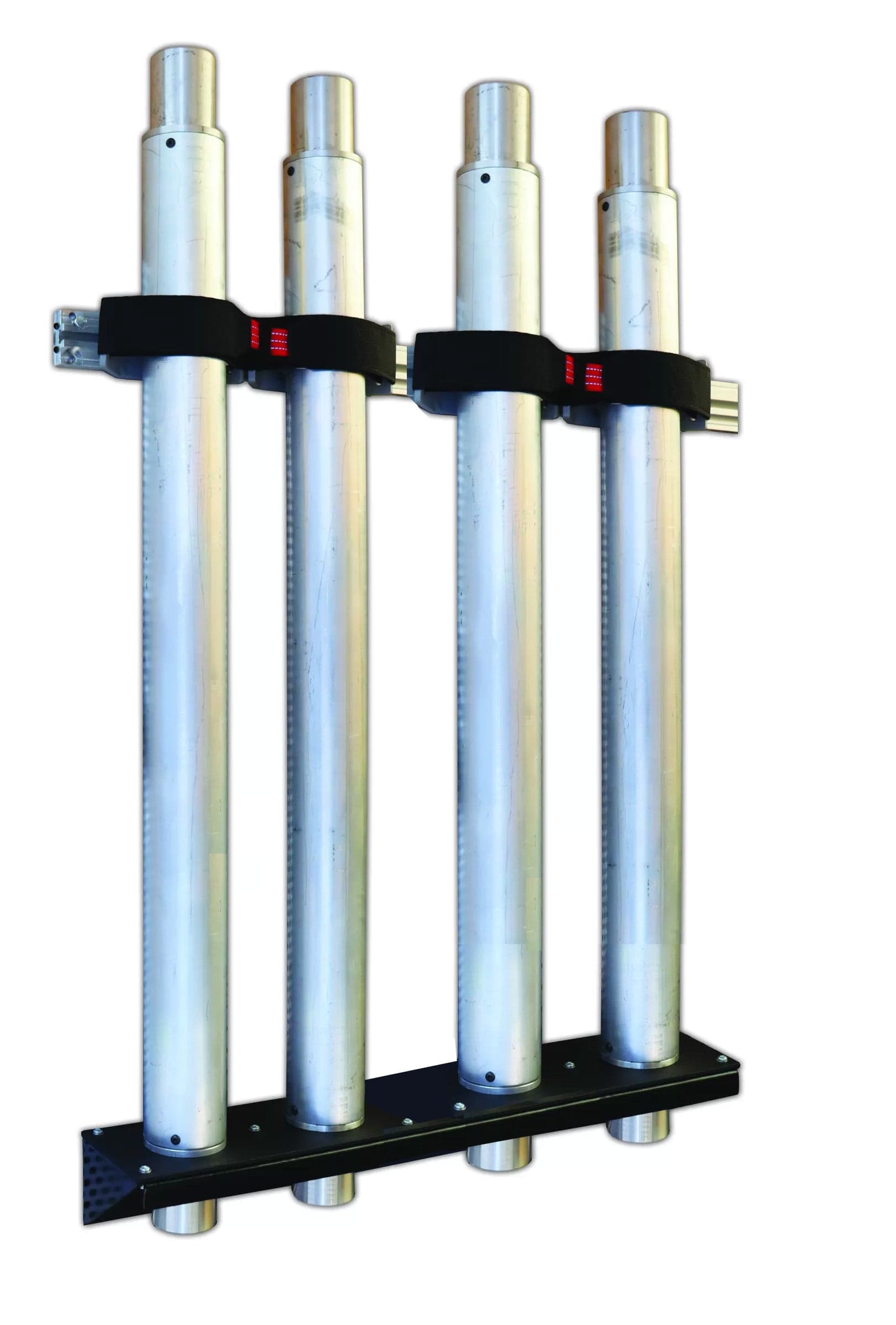

• VM-3RS-Q: Quadruple 3" Strut Bracket
