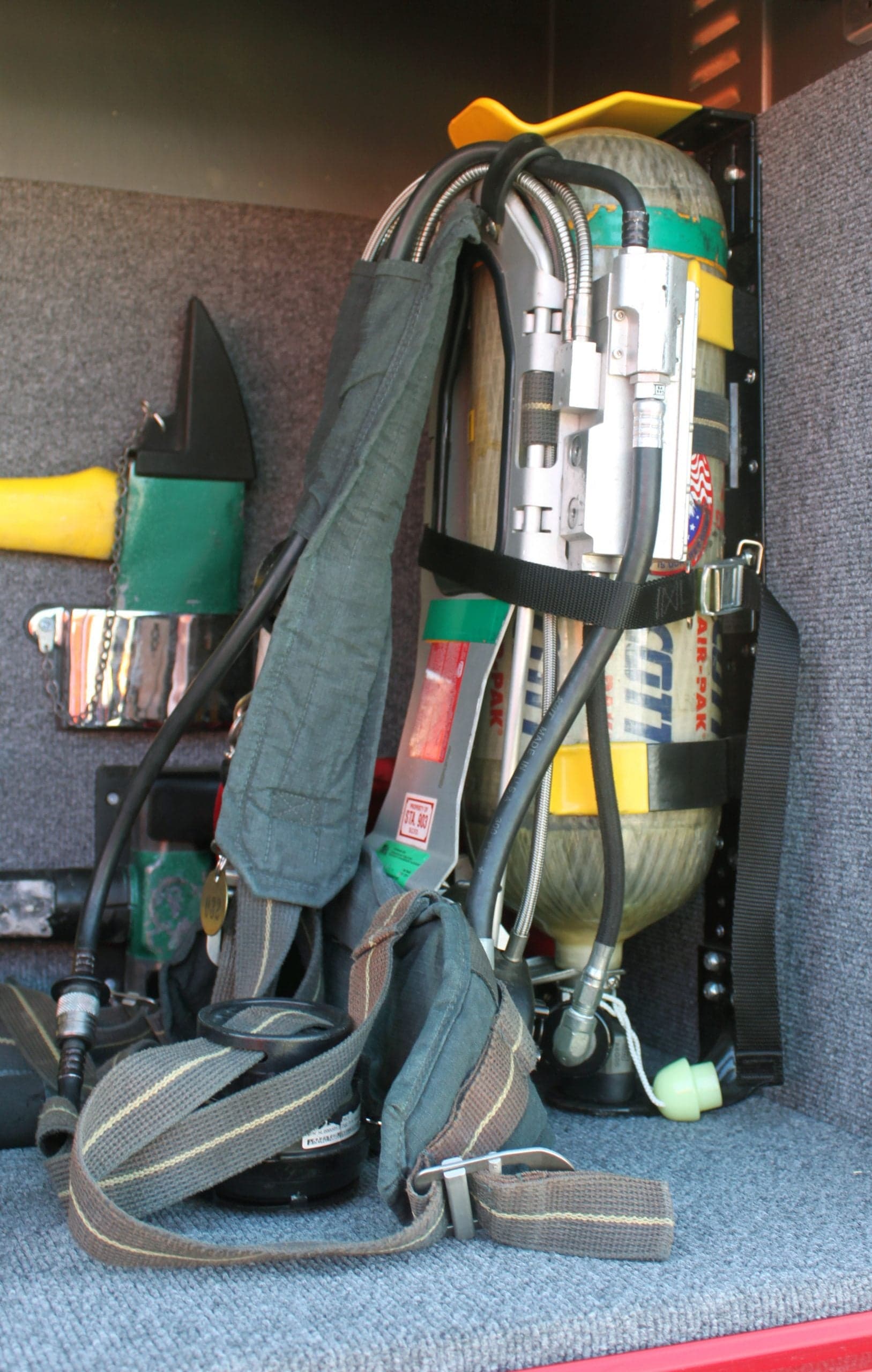

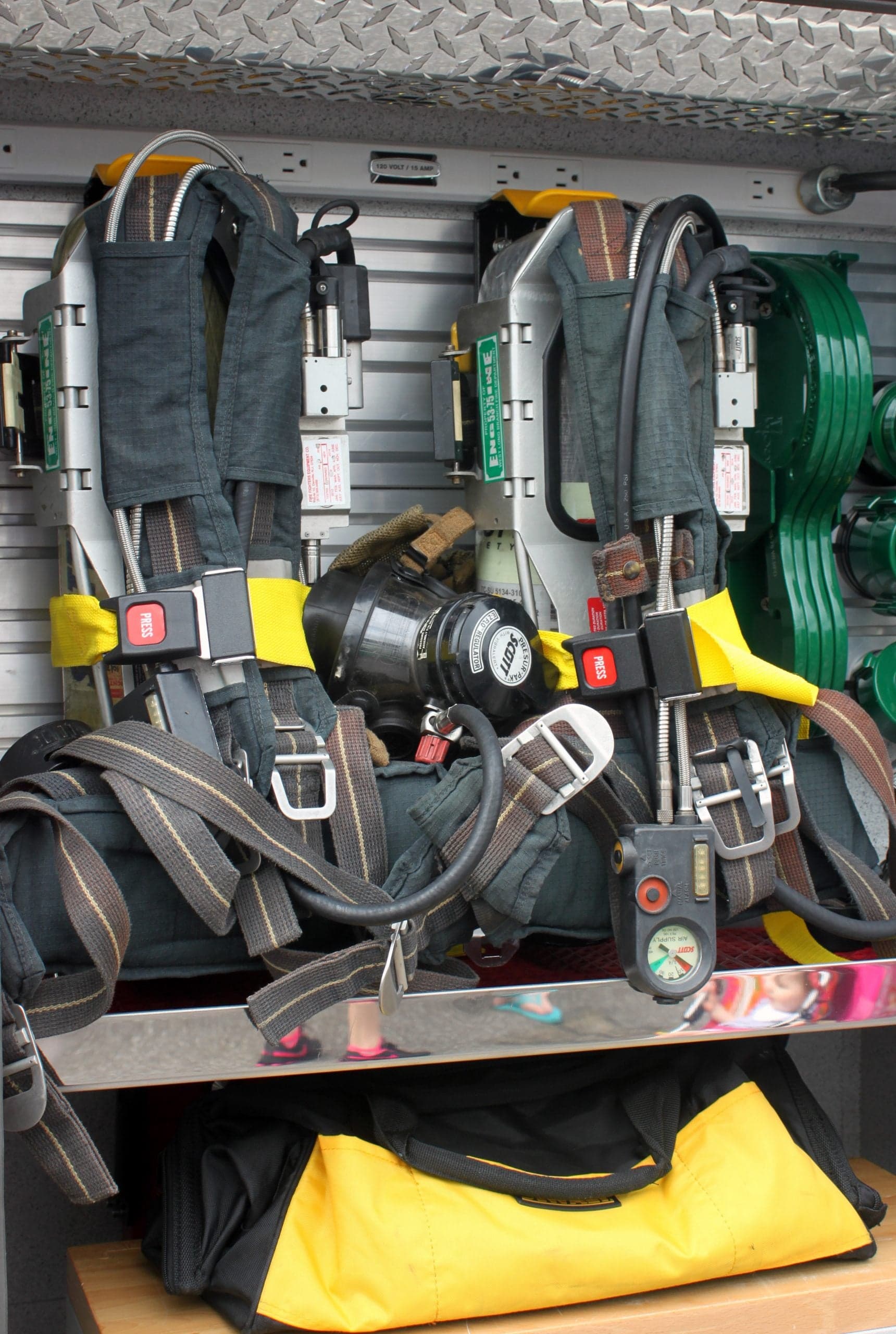

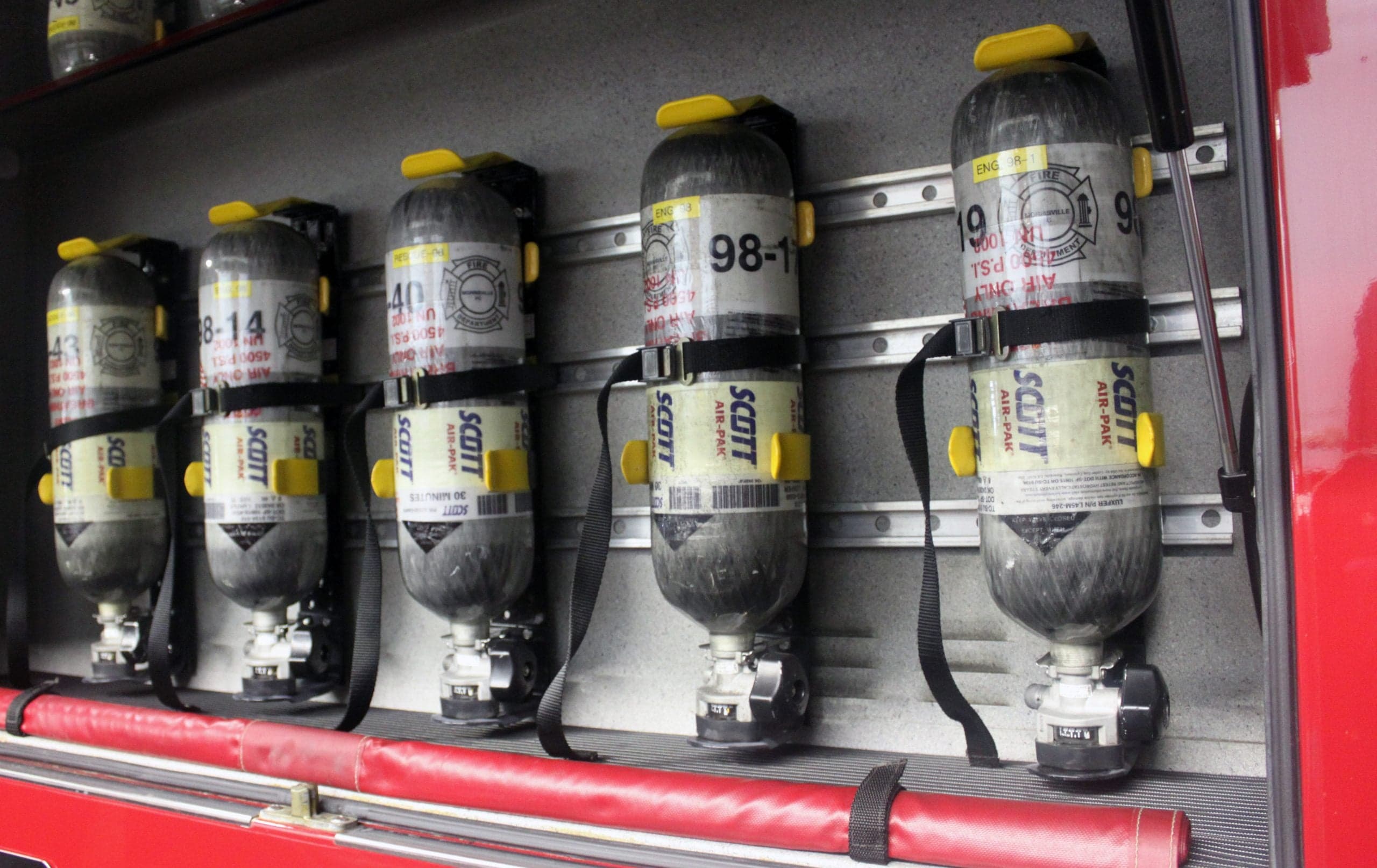

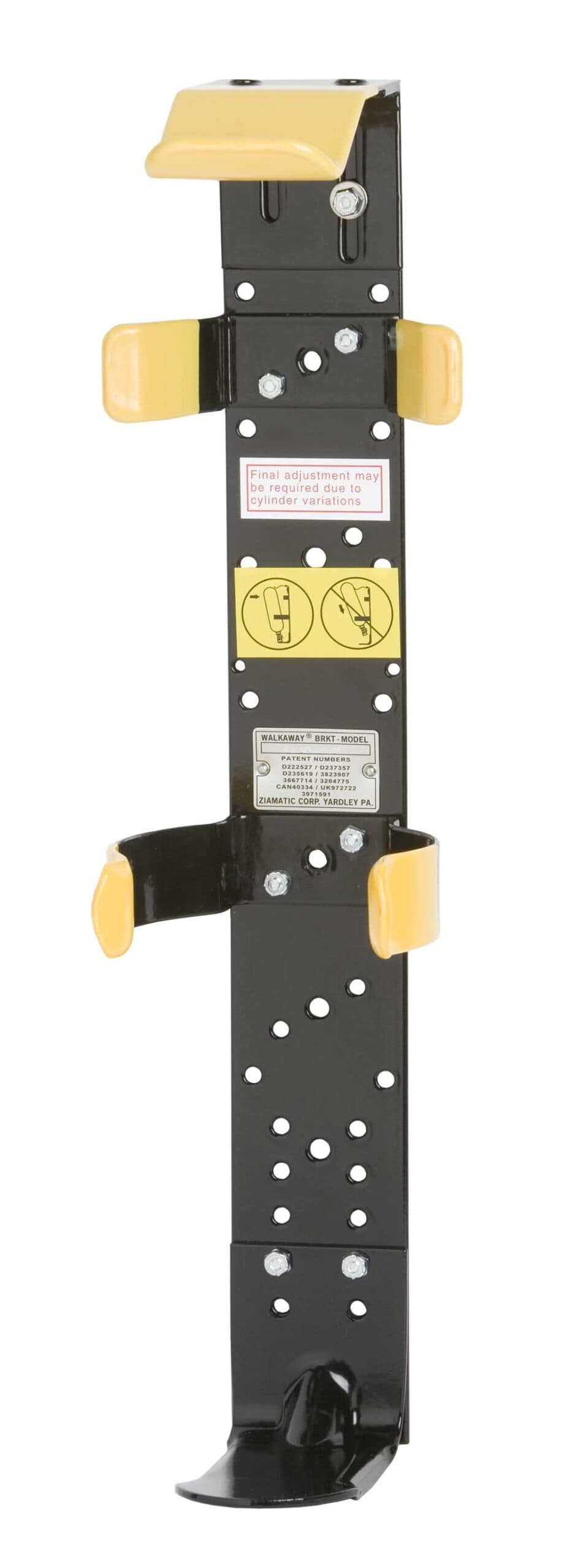

This WALKAWAY Spring Clip Bracket is ideal for use with 4500 & 5500 PSI cylinders and offers a safe, secure solution to storing SCBA with unique harness and hose configurations, such as the Scott 50/75 Anniversary Air-Paks.
Features:
– A spring clip on the bottom half and a seat on the upper half allow for adequate clearance around unique harnesses and hoses, setups where two full spring clips would otherwise not fit.
– Non-mar, double coated top clip provides additional support for the upper half of the air cylinder.
– Simple, easy, and quick. To stow, simply place the valve on the footplate and push the cylinder into the clips. To remove, just pull the cylinder free
Note: Per NFPA regulations, these brackets can only be used in non-crew areas/the station unless the apparatus was manufactured prior to 2003.
Models Available:
Model SC-50-H-5-SF: For 5.5″ diameter 4500 PSI and 30 minute 5500 PSI cylinders
Model SC-50-H-6-SF: For 6.75" diameter 4500 PSI and 45 minute 5500 PSI cylinders
Model SC-50-H-7-SF: For 7" to 7.4" diameter cylinders
Model SC-50-H-5-SFPHS: For 5.5″ diameter 4500 PSI and 30 minute 5500 PSI cylinders. Includes Positive Holding Strap.
Model SC-50-H-6-SFPHS: For 6.75" diameter 4500 PSI and 45 minute 5500 PSI cylinders. Includes Positive Holding Strap.
Model SC-50-H-7-SFPHS: For 7"to 7.4" diameter cylinders. Includes Positive Holding Strap.
