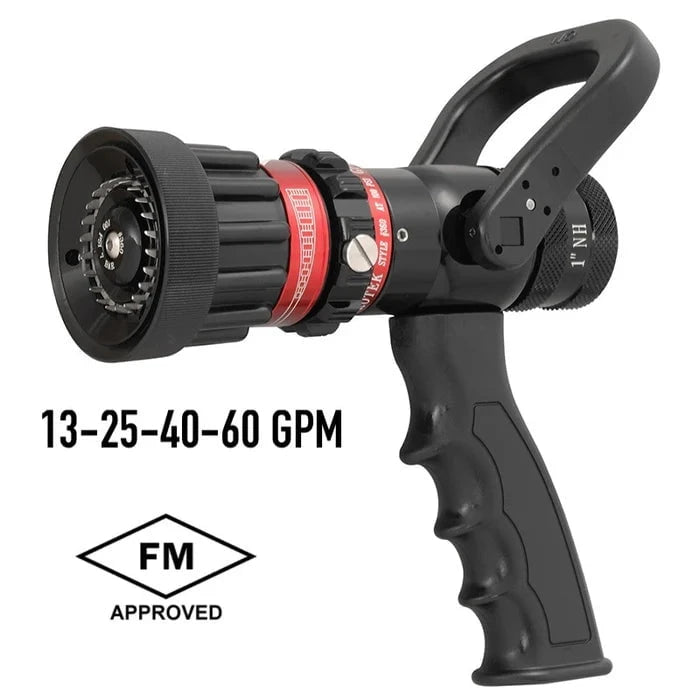

1" Selectable Gallonage Nozzle (13-25-40-60 GPM)

Features

• Combination pattern nozzles with multiple flow settings.
• Superb wide fog pattern for optimum fire fighter protection.
• Stainless steel spinning teeth.
• Heavy-duty chrome plated metal shutoff ball for smooth action and long life.
• Flow pattern detents facilitate positive positioning and smooth action.
• Raised lug for easier pattern identification.
• Laser-etched anodized label for excellent durability and visibility.
• Flush without changing pattern or shutting down.
• Suitable for high pressure applications up to 580 psi (40 bar).
• Ergonomic design pistol grip.
• Continuous female swivel inlet with stainless steel strainer.
• Minimal maintenance reflected in robust design, precision machining and quality materials.

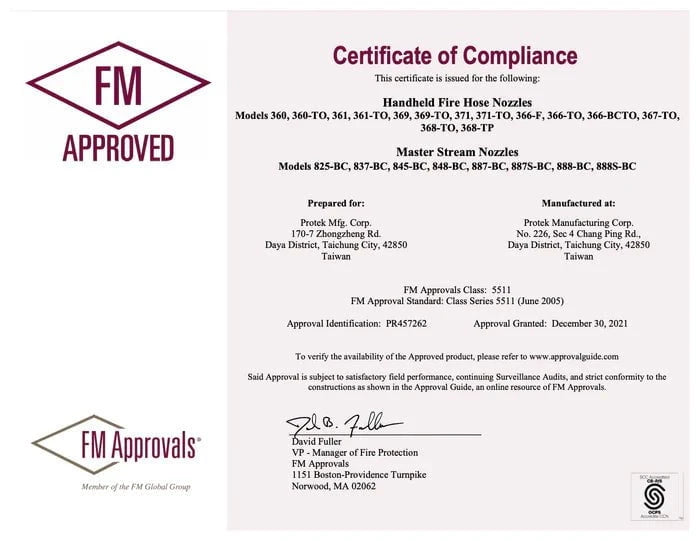

• FM Approved
• Uses Foam Aeration Tube: 1210
• NFPA 1964 Compliant

Specifications

• Style: 1361
• Flow Rate: 13-25-40-60 GPM (50-100-150-230 LPM)
• Operating Pressure: 100 psi (7 bar), 580 psi (40 bar)
• Waterway: ¾”
• Inlet: 1" (25 mm) – NH or NPSH
• Length: 7.4" (190 mm)
• Weight: 2.3 lbs (1.1 kg)
