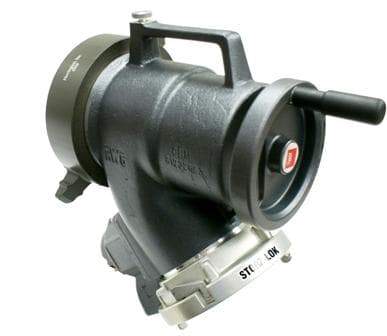

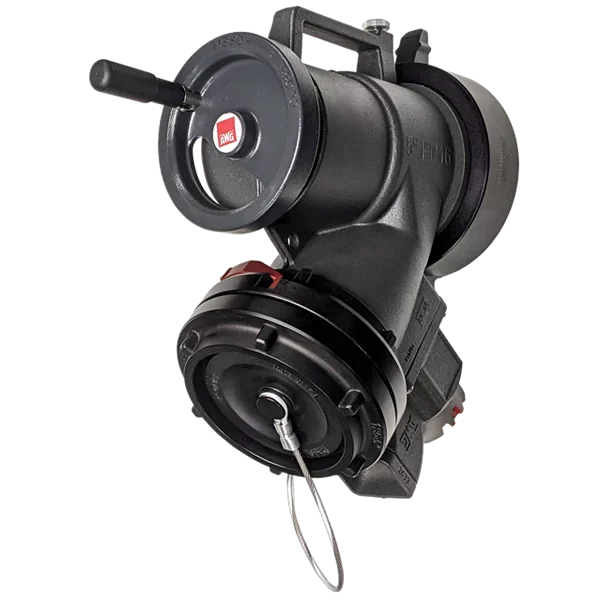

Stainless Piston Intake w/ Relief Valve (Storz Lock x NH Female)
Traditional piston intake valve design used for pumper intake control. Provides the following features: a 30 degree integrated elbow, a field adjustable pressure relief valve and an air bleeder valve.
This is a stainless steel piston, sleeve and spindle for corrosion protection. Choose from a variety of sizes of Storz or NH connections.
Incorporated 250 PSI field adjustable pressure relief valve adjustable in increments of 25 degrees from 75- 250 PSI.
Friction loss at 1,000 GPM is 2.30 PSI
Extension 10.5″ x W 8″ x H 17″
Wt. 27 lb.
Available Configurations:
| H500S-40-45NH |
5" Piston intake valve stainless steel w/ 45° 4" Storz lock x 4.5" NH female swivel rocker lug w/ 250-S RV
|
|
H500S-40-50NH
|
5" Piston intake valve stainless steel w/ 45° 4" Storz lock x 5" NH female swivel rocker lug w/ 250-S RV
|
|
H500S-40-60NH
|
5" Piston intake valve stainless steel w/ 45° 4" Storz lock x 6" NH female swivel short handle w/ 250-S RV
|
|
H500S-50-45NH
|
5" Piston intake valve stainless steel w/ 45° 5" Storz lock x 4.5" NH female swivel rocker lug w/ 250-S RV
|
|
H500S-50-50NH
|
5" Piston intake valve stainless steel w/ 45° 5" Storz lock x 5" NH female swivel rocker lug w/ 250-S RV
|
|
H500S-50-60NH
|
5" Piston intake valve stainless steel w/ 45° 5" Storz lock x 6" NH female swivel short handle w/ 250-S RV
|
|
H500S-60-45NH
|
5" Piston intake valve stainless steel w/ 45° 6" Storz lock x 4.5" NH female swivel rocker lug w/ 250-S RV
|
|
H500S-60-50NH
|
5" Piston intake valve stainless steel w/ 45° 6" Storz lock x 5" NH female swivel rocker lug w/ 250-S RV
|
|
H500S-60-60NH
|
5" Piston intake valve stainless steel w/ 45° 6" Storz lock x 6" NH female swivel short handle w/ 250-S RV
|
