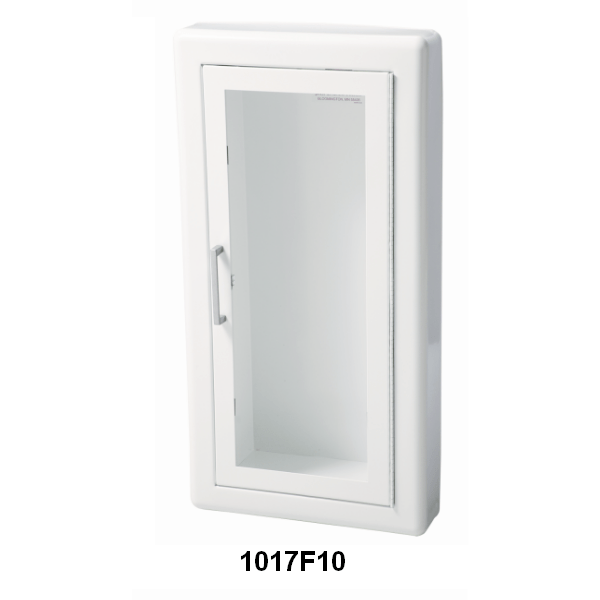

The Ambassador Series Semi-Recessed Steel Fire Extinguisher Cabinet provides secure, highly visible storage for fire extinguishers in commercial, industrial, educational, healthcare, and public facilities. Constructed from durable cold-rolled steel with a white powder-coated finish, this cabinet is designed to protect fire extinguishers while maintaining a clean, professional appearance. Its semi-recessed configuration minimizes wall projection without sacrificing accessibility, making it an ideal solution for corridors, offices, schools, warehouses, and other commercial environments.
A full-view tempered glass door allows occupants to quickly locate the fire extinguisher during an emergency, while the flush-mounted door, continuous hinge, zinc-plated handle, and roller catch ensure smooth, reliable operation. Designed to accommodate select 2.5 lb., 5 lb., and 10 lb. fire extinguishers, the Ambassador Series cabinet combines durability, functionality, and code-conscious design for dependable fire protection storage.
Features
• Semi-recessed fire extinguisher cabinet for commercial and institutional applications
• Durable cold-rolled steel construction for long service life
• White powder-coated finish helps resist corrosion and everyday wear
• Full-view tempered glass door provides excellent extinguisher visibility
• Flush-mounted door with 5/8" door stop for a clean appearance
• Continuous hinge provides smooth, dependable door operation
• Zinc-plated handle with roller catch helps prevent door jamming and allows quick access
• 1-3/4" face trim and 1-1/4" door trim provide a finished appearance
• Square-edge trim design with optional rolled-edge trim available
• Designed to securely hold select 2.5 lb., 5 lb., and 10 lb. fire extinguishers
• ADA compliant when installed between 4" and 27" above the finished floor
Specifications
• Manufacturer: JL Industries
• Series: Ambassador
• Product Type: Semi-Recessed Fire Extinguisher Cabinet
• Material: Cold-rolled steel
• Finish: White powder coat
• Door: Full-view clear tempered glass
• Hinge: Continuous hinge
• Latch: Zinc-plated handle with roller catch
• Face Trim: 1-3/4"
• Door Trim: 1-1/4"
• Door Stop: 5/8"
• Wall Projection: 3-3/4"
• Edge Style: Square edge (rolled edge optional)
• Compatible Fire Extinguisher Sizes: Select 2.5 lb., 5 lb., and 10 lb. extinguishers (depending on cabinet size)
• Compliance: ADA compliant when installed within specified mounting heights
