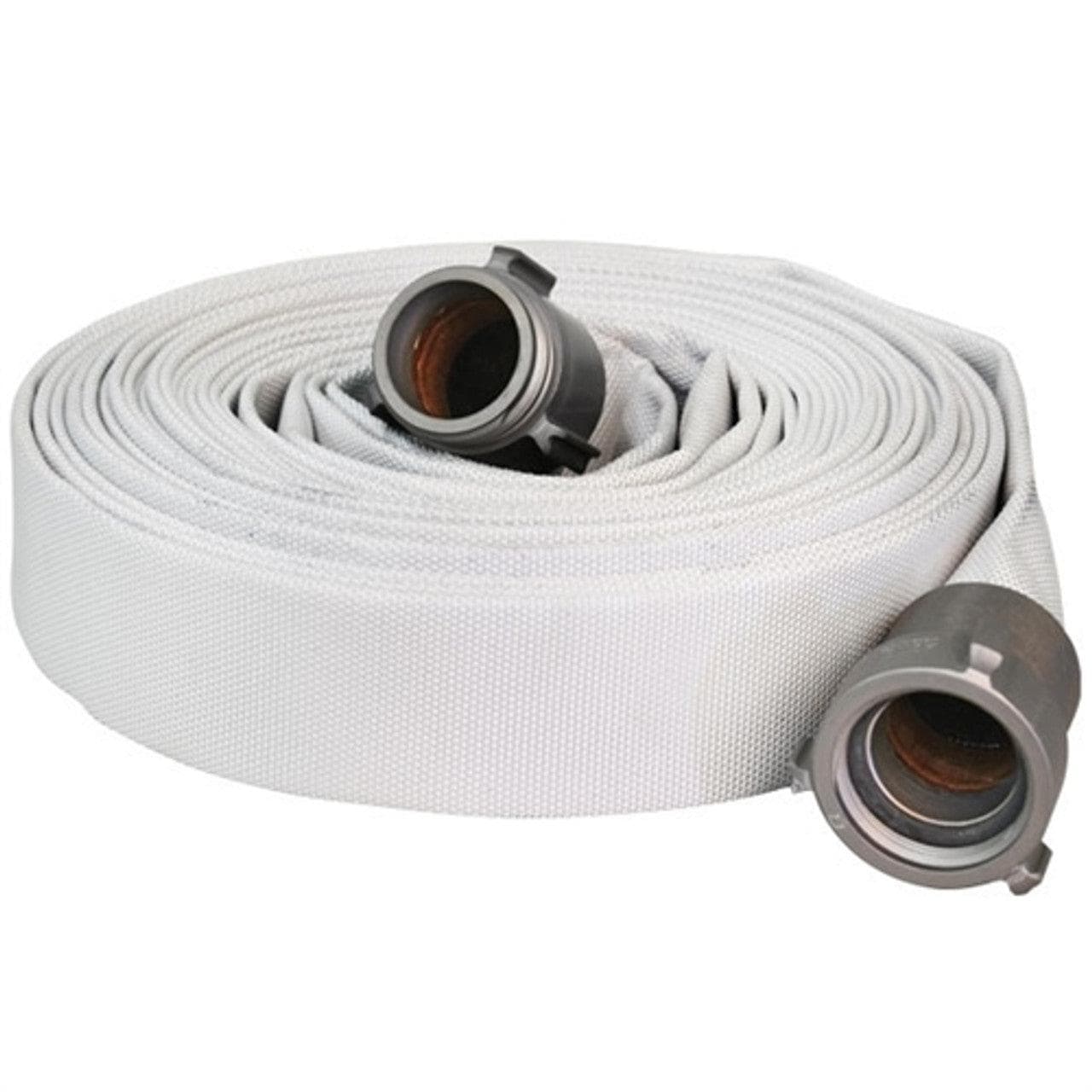

The ATI Forest Lite Type I is a single jacket, polyurethane lined lightweight hose intended for use in wildland fire suppression.
Lining - The thin walled polyurethane lining is a single-ply extruded tube and is unaffected by ozone. The finished form is free of pits or other imperfections and has a smooth finish. No reclaimed material is used. The tensile strength of the liner is not less than 2000 psi, with a maximum elongation of 10 percent.
Couplings – Expansion-type hardcoat anodized aluminum meeting U.S. Forestry specifications are standard. NST, NPSH, or Quarter-Turn couplings are available.
Warranty - ATI warranties both the hose and couplings to be free from defects in material and workmanship for a period of 1 year. Upon evaluation, apart from mistreatment that would make it unfit for service, hose found to be defective will be repaired or replaced by ATI at no charge to the fire department.
Specifications:
Size
Service Test
Proof Test
Burst Test
Weight (lbs.)
1"
300 psi
600 psi
900 psi
4
1-1/2"
300 psi
600 psi
900 psi
7
Features:
Meets or exceeds NFPA 1961 Fire Hose Standard, 2013 edition as well as U.S. Forest Service F-187 standard.
Colors: white
Available in the sizes of 1" and 1-1/2"
The jacket is virgin high tenacity polyester
Thin walled polyurethane lining is a single-ply extruded tube
