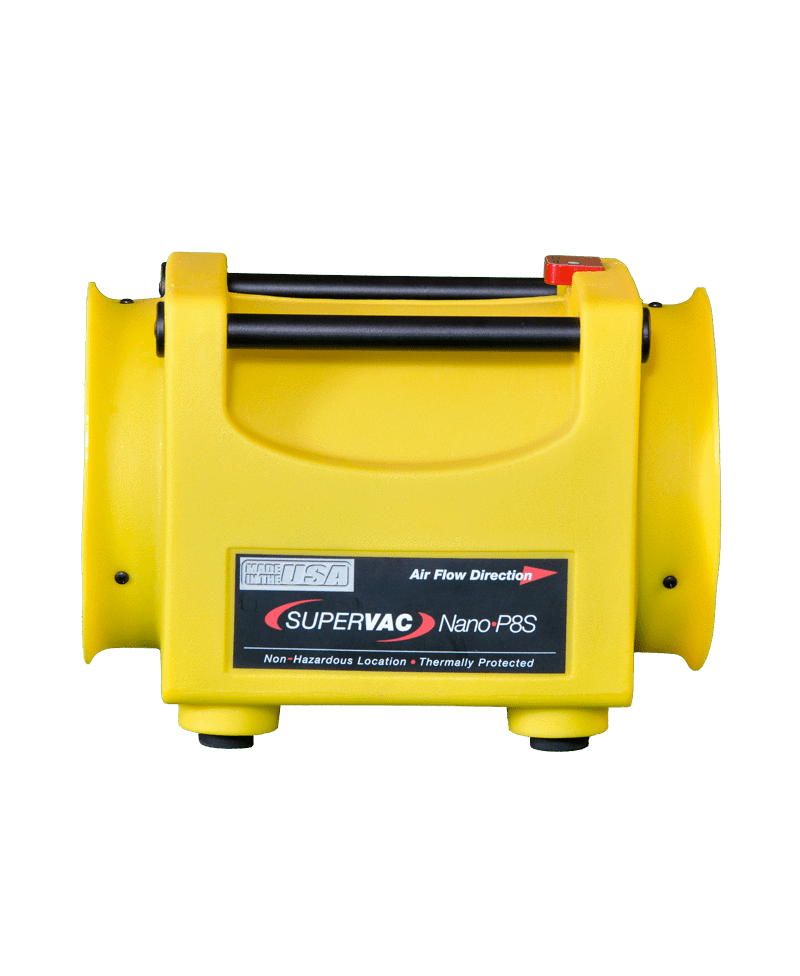

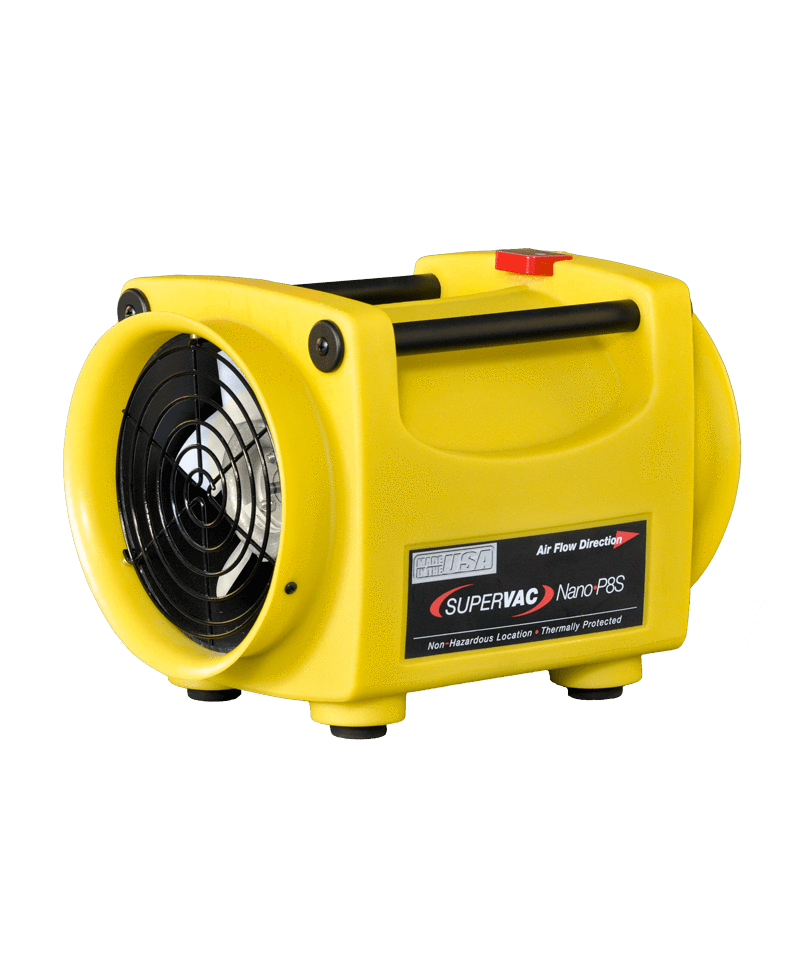

The Super Vac Nano P8S, 8" electric confined space fan shall be supplied. The unit
shall feature a square construction design for strength and stability. The unit shall
be designed with two (2) carrying handles on each corner for easy positioning
and rapid deployment. All components of the fan shall be 100% manufactured and
assembled in the United States.
The confined space fan shall be powered by a 1/3 Horsepower electric motor that
is Total Enclosed Air Over (TEAO) type design. The unit shall be operational with
115VAC or 230VAC systems.
The entire housing of the unit shall be constructed of weather- and corrosion resistant, high-impact polyethylene with a full aluminum liner and aluminum handles
for strength. The blade shall be constructed of Durethan BKV 25 H3.0 and rated
from -40° C to +95° C. The blade shall be precision balanced and attached to the
engine shaft for a direct-drive connection. Any fan utilizing belts, pulley, gears or
additional shafts shall not be acceptable.
The front and rear safety guards shall be designed to OSHA and U.L. Standards to
prevent accidental contact with the blade.
The unit shall be designed to accept a ventilation air duct to either the inlet or outlet
side of the fan. The unit shall be designed to be used in conjunction with either a
spiral or “L” air without any additional adapters required.
- Motor Manufacturer: TEAO Electric Motor
- Horsepower: 1/3 HP
- Voltage: 115V, 60Hz or 230V, 50Hz
- Output: 1,037 cfm
