The Roll-Over Leak Control Kit is designed to provide rapid temporary sealing of large holes and punctures in tanks, vessels, and containers where chain or cable wrap-around systems are not practical or required. Utilizing a heavy-duty neoprene-faced patch with a stainless steel backing plate and support frame, the kit creates a secure seal over damaged areas to help contain hazardous materials and minimize product loss.
The system is engineered for quick deployment and straightforward installation. Stainless steel hardware throughout the kit provides excellent durability and corrosion resistance, while the patch and support frame feature additional mounting locations to accommodate punctures located near obstructions or irregular surfaces. This makes the Roll-Over Kit an effective solution for hazmat response teams, industrial facilities, transportation operations, and emergency spill containment applications.
Features
• Designed for temporary sealing of large holes and punctures in tanks and vessels
• Ideal when chain or cable wrap-around systems are not required
• Heavy-duty neoprene-faced patch with stainless steel backing
• Stainless steel support frame for strength and durability
• Corrosion-resistant stainless steel hardware throughout the system
• Additional mounting holes accommodate punctures near obstructions
• Fast and simple installation process for emergency leak control
• Suitable for hazardous materials response, spill containment, and industrial maintenance applications

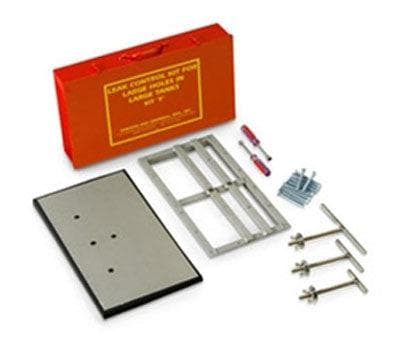

Kit Contents
• (1) 13" x 23" Patch Assembly
• (1) 12" x 22" Stainless Steel Support Frame
• (4) Stainless Steel T-Bolts with Wing Nut Combinations
• (16) Outer Conforming Bolts
Installation Overview
• Insert T-bolts through the patch assembly and attach the wing nut/back-up plate assemblies
• Position T-bolts to straddle the damaged area
• Tighten wing nuts to secure the patch against the vessel surface
• Adjust and tighten the outer conforming bolts as needed to match the contour of the vessel and improve sealing performance
Specifications
• Manufacturer: Edwards & Cromwell
• Product Type: Leak Control Patch Kit
• Model: F Roll-Over Leak Control Kit
• Patch Size: 13" x 23"
• Support Frame Size: 12" x 22"
• Patch Material: Neoprene Face with Stainless Steel Backing
• Frame Material: Stainless Steel
• Hardware Material: Stainless Steel
• Application: Temporary leak control for tanks, vessels, containers, and hazardous material incidents
• Suitable For: Hazmat response teams, industrial facilities, transportation operations, fuel storage sites, and emergency spill response programs
