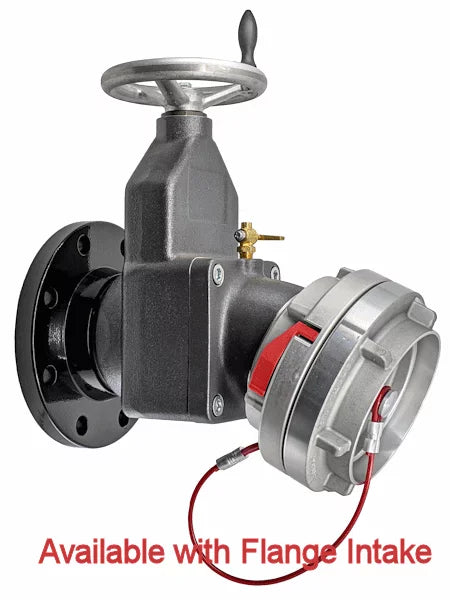

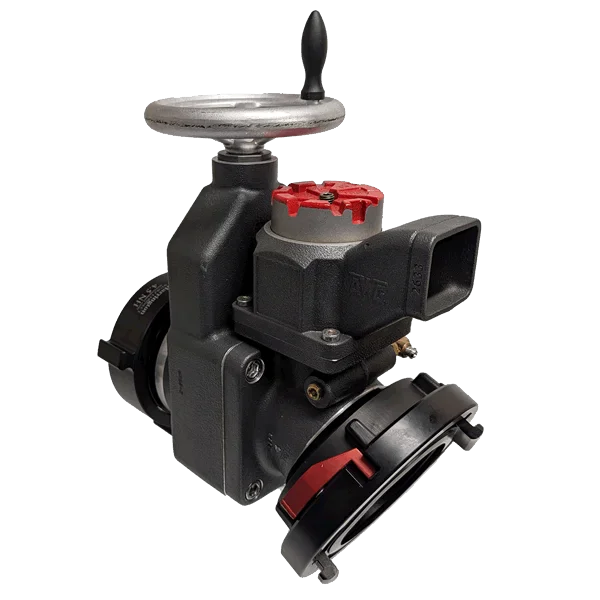

Elbow 4” Straight Gate Valve with Adjustable Pressure Relief (NH Male x NH Female Swivel Rocker Lug)
This LDH hydrant gate valve has the following features: slow open/close, a 25 degree elbow, and low friction loss due to a high flow waterway design.
The light weight gate valve has a non rising stem, an air bleeder valve, a field adjustable pressure relief valve, an anodized gate, and a stainless steel spindle. Choose from a variety of sizes of Storz or NST connections.
Friction Loss at 1000 GPM: 0.8 PSI.
Dimensions: L: 12.5" W: 7" H: 15"
Weight: 24 lbs
Available Models:
H810-40NHM-40NH
|
4" Gate valve w/250-S RV 25° elbow 4” NH male x 4” NH female swivel rocker lug
|
H810-45NHM-45NH
|
4" Gate valve w/250-S RV 25° elbow 4.5” NH male x 4.5” NH female swivel rocker lug
|
H810-50NHM-50NH
|
4" Gate valve w/250-S RV 25° elbow 5” NH male x 5” NH female swivel rocker lug
|
| H810-40NHM-40NH |
4" Gate valve w/250-S RV 25° elbow 6” NH male x 6” NH female swivel rocker lug
|
