Description

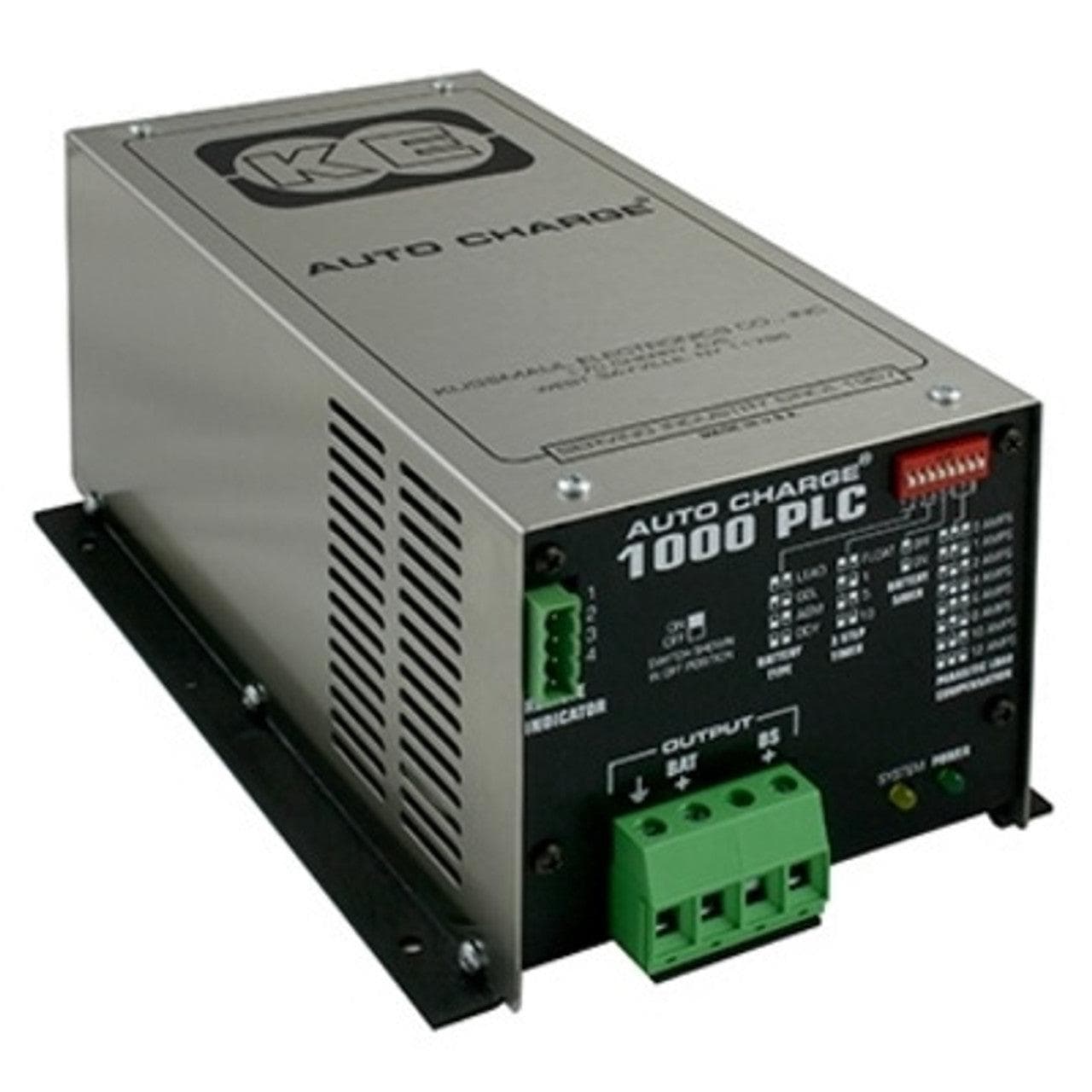

The Kussmaul Auto Charge 1000 is a compact, microprocessor-controlled battery charger with Parasitic Load Compensation (PLC), designed to charge and maintain a single 12-volt battery bank in fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles. Providing 18 amps of total output capacity, the system combines a 15-amp battery charger with a separate 3-amp Battery Saver output to support vehicle battery maintenance and auxiliary electrical loads.
Parasitic Load Compensation is specifically designed for emergency vehicles that operate continuous accessory loads such as flashlights, gas detectors, computers, radios, and monitoring equipment. The system allows the installer to enter the vehicle's total parasitic load current so the charger can adjust the absorption-stage transition point. This allows the battery to properly transition to float voltage without accessory loads causing extended charging cycles, helping prevent overcharging, overheating, and premature battery wear.
A precision electronic voltage controller monitors the battery without requiring separate sense wires. Battery type selection switches allow the charging system to be configured for Lead-Acid, Gel Cell, AGM, or Odyssey batteries, while selectable Float and 3-Step charging modes provide additional flexibility for different battery maintenance requirements.
The separate Battery Saver output provides 13 VDC at up to 3 amps for compatible auxiliary loads. When the Battery Saver is turned off, the charger can provide up to 18 amps of charging output to the battery. Optional remote displays and compatible Super Auto Eject Deluxe Covers provide additional vehicle-mounted charging system monitoring options.
Features
• Microprocessor-controlled, fully automatic battery charger for a single 12-volt battery bank
• 18 amps of total output capacity
• 15-amp battery charger with separate 3-amp Battery Saver output
• Provides up to 18 amps of battery charging output when the Battery Saver is turned off
• Parasitic Load Compensation designed for emergency vehicles with continuous accessory loads
• Allows user input of total vehicle accessory load current
• Adjusts the absorption-stage transition point to compensate for parasitic electrical loads
• Helps prevent overcharging, overheating, and premature battery wear caused by continuous accessory loads
• Precision electronic voltage controller eliminates the need for separate battery sense wires
• Battery type selection for Lead-Acid, Gel Cell, AGM, and Odyssey batteries
• Selectable Float and 3-Step charging modes
• Green LED indicates when 120V AC input power is applied
• Yellow system status LED provides charger operating information
• Optional Remote Bar Graph Display available
• Optional Auto Charge Deluxe Status Center available
• Optional Watertight Auto Charge Deluxe Status Center available in multiple colors
• Compatible with Super Auto Eject Deluxe Cover 091-55-234-XXX with Bar Graph Display
• Compatible with Super Auto Eject Deluxe Cover 091-55-194B-XXX with Digital Display
• Rugged construction designed to withstand shock and vibration encountered in vehicle-mounted applications
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Automatic Battery Charger with Parasitic Load Compensation and Battery Saver
• Charger Model: Auto Charge 1000
• Battery Bank Configuration: Single
• Battery Charger Output Voltage: 12 VDC
• Battery Charger Output Current: 15 Amps
• Maximum Battery Charging Output with Battery Saver Off: 18 Amps
• Battery Saver Output: 13 VDC, 3 Amps
• Total Output Capacity: 18 Amps
• AC Input Voltage: 120 VAC
• Input Frequency: 60 Hz
• Maximum Input Current: 3.5 Amps
• Input Fuse: 6 Amps, Fast Blow
• Output Fuse: 40 Amps
• Output Fuse Part Number: 090-0040-0
• Charging Modes: Float and 3-Step
• Supported Battery Types: Lead-Acid, Gelled Electrolyte (Gel Cell), AGM, and Odyssey
• Parasitic Load Compensation: Yes
• Voltage Sensing: Electronic; Separate Sense Lines Not Required
• Battery Saver: Yes, 3 Amps
• Remote Display Included: No
• Remote Display Options: Bar Graph Display, Deluxe Status Center, or Watertight Status Center
• Standard Remote Bar Graph Display: 091-215-12
• Deluxe Status Center Option: 091-215-12-194B
• Watertight Deluxe Status Center: 091-194B-IND-WT-XX
• DC Output Connector Torque: 15 in-lbs.
• Low-Profile Design: No
• International Model: No
• EV Series: No
• Weight: 11 lbs.
• Warranty: 3 Years
