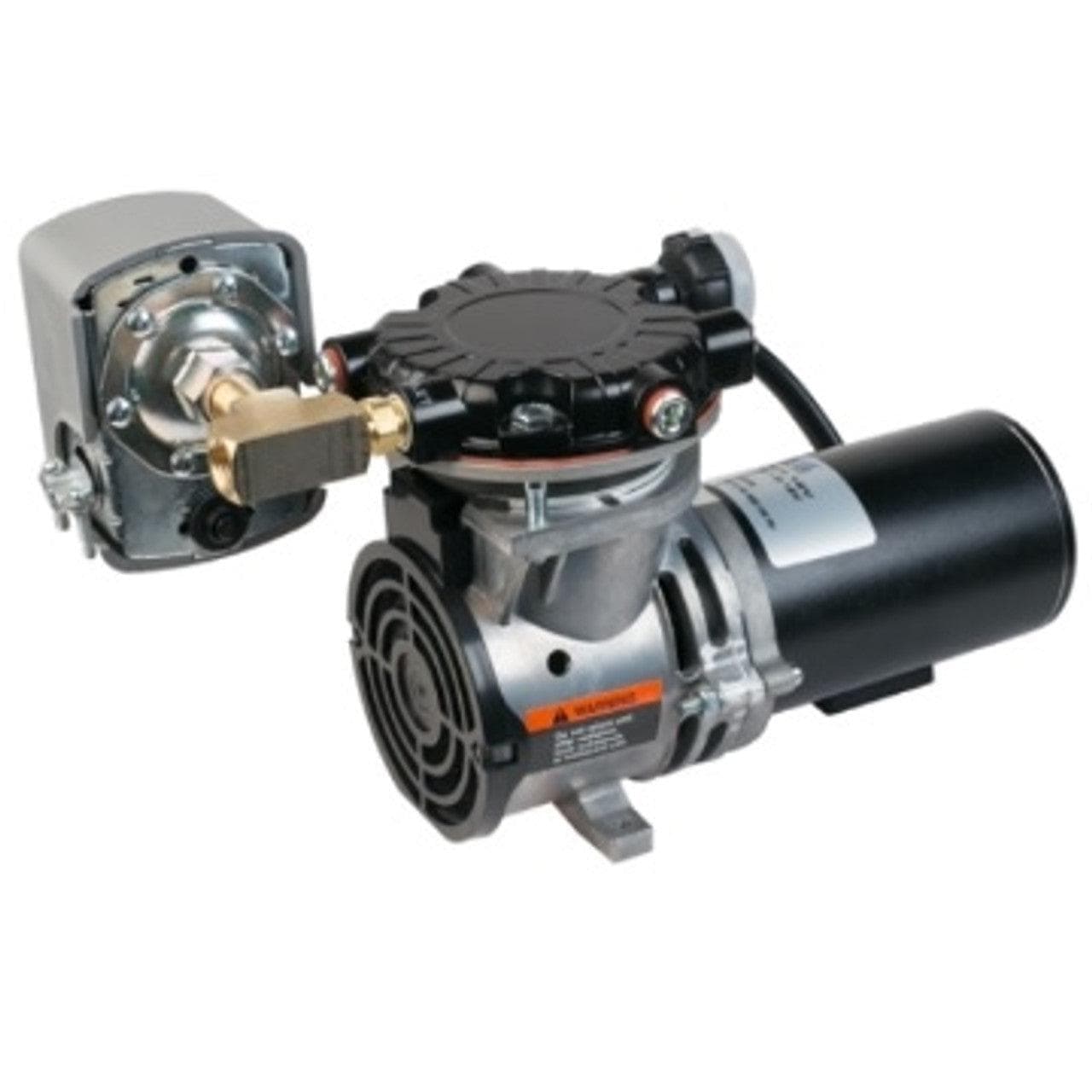

The Kussmaul Auto Pump 12V is a compact, vehicle-mounted air compressor designed to automatically maintain air brake system pressure while fire apparatus, rescue vehicles, and other air-brake-equipped vehicles are parked or not in use. By compensating for normal air system leaks, the Auto Pump helps keep the vehicle's air brake system properly pressurized for immediate dispatch and reduces the risk of brake lockup caused by low air pressure.
A pressure switch continuously monitors the vehicle's air system and automatically starts the compressor when pressure drops to approximately 75 PSI. The compressor continues operating until system pressure reaches approximately 95 PSI and then automatically shuts off. The pressure switch includes an integrated 15-amp circuit breaker for additional electrical protection.
The Auto Pump operates independently of the vehicle's engine-mounted air compressor and can be installed in either a horizontal or vertical orientation to accommodate different vehicle configurations. Sealed ball bearings and lifetime lubrication provide dependable operation with minimal maintenance requirements, while the compact design helps conserve valuable apparatus compartment space.
Features
• Vehicle-mounted 12V air compressor for maintaining air brake system pressure
• Automatically compensates for normal air system leaks while the vehicle is not in use
• Helps keep fire apparatus and other emergency vehicles properly pressurized for immediate dispatch
• Pressure switch automatically senses low air pressure and starts the compressor
• Automatically shuts off when proper air system pressure is restored
• Factory-set pressure switch operates at approximately 75 PSI ON and 95 PSI OFF
• Fixed 20 PSI pressure differential
• 100 PSI maximum pressure rating
• Integrated 15-amp circuit breaker installed in the pressure switch
• Delivers 0.30 SCFM at 80 PSI and 0.35 SCFM at 60 PSI
• Operates independently without interfering with the vehicle's engine-mounted air compressor
• Sealed ball bearings provide dependable operation and long service life
• Lifetime-lubricated construction requires minimal routine servicing
• Can be mounted horizontally or vertically
• Compact design conserves valuable vehicle installation space
• Designed for fire apparatus, rescue vehicles, and other air-brake-equipped emergency or specialty vehicles
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Vehicle-Mounted Air Compressor
• Application: Air Brake System Pressure Maintenance
• Input Voltage: 12 VDC
• Maximum Input Current: 11 Amps
• Maximum Pressure: 100 PSI
• Factory Cut-In Pressure: 75 PSI
• Factory Cut-Out Pressure: 95 PSI
• Pressure Differential: 20 PSI
• Air Output: 0.30 SCFM at 80 PSI / 0.35 SCFM at 60 PSI
• Circuit Protection: 15-Amp Circuit Breaker Integrated into Pressure Switch
• Mounting Orientation: Horizontal or Vertical
• Bearing Construction: Sealed Ball Bearings
• Lubrication: Lubricated for Life
• Weight: 6 lbs.
