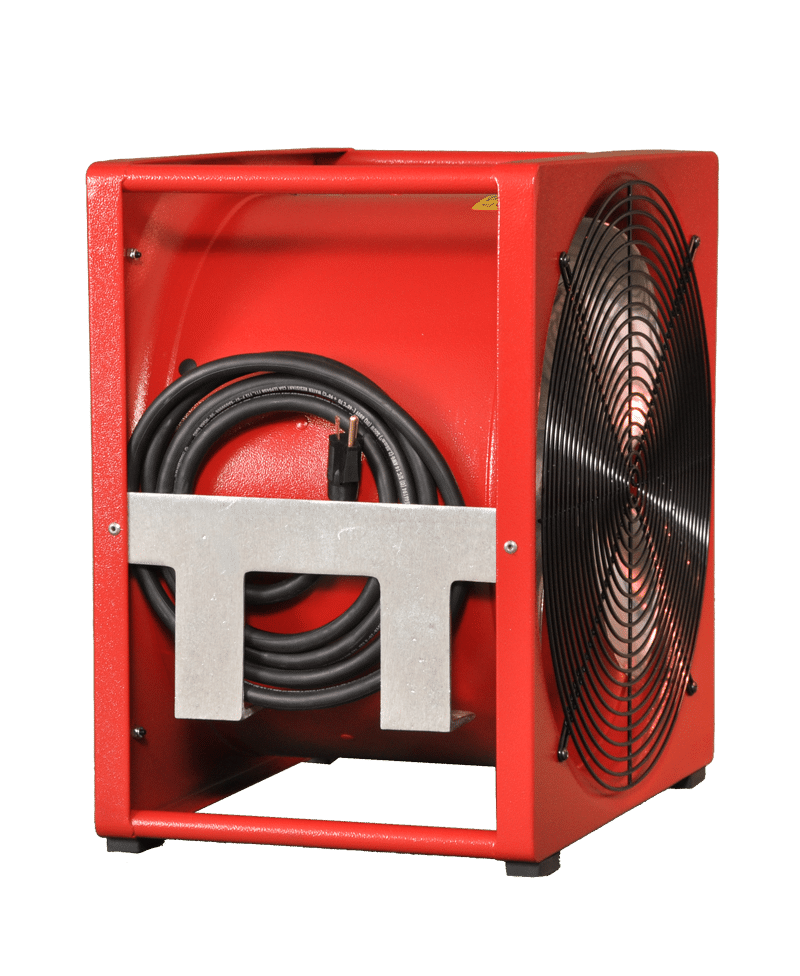

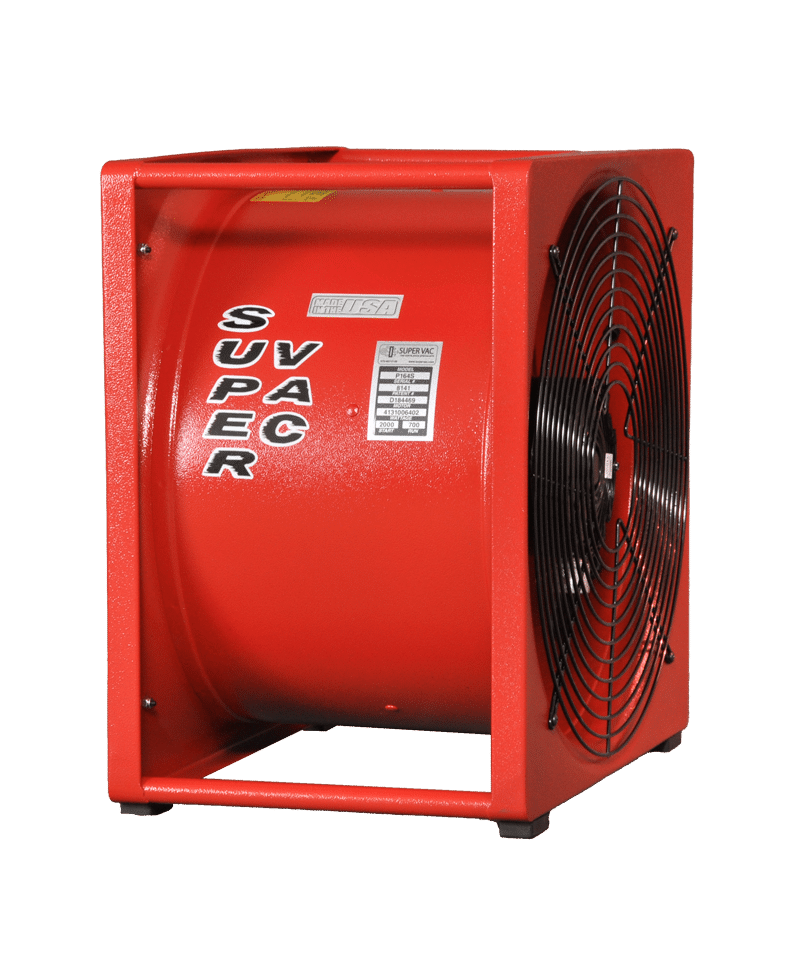

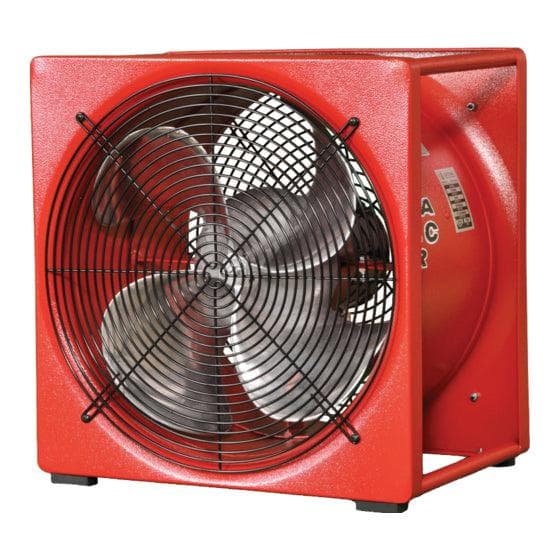

The Super Vac Standard Electric Smoke Ejector Fan is a versatile ventilation fan designed to remove smoke, heat, and hazardous fumes from structures during firefighting and rescue operations. Available in both steel and lightweight aluminum frame configurations, these single-speed electric smoke ejectors provide dependable performance for everyday ventilation needs. Designed primarily for negative pressure ventilation, the fan can also be repositioned for positive pressure ventilation tactics when conditions require. For maximum effectiveness, smoke ejectors perform best when working with natural airflow rather than against prevailing wind conditions.
Built for durability and long service life, the fan features Super Vac's patented 4-tip recurve aluminum blade, a precision-balanced design for maximum airflow, heavy-duty rubber feet for added stability, and front and rear safety guards to protect key components. Four integrated carry handles make transportation easy for one or two firefighters, while multiple size and frame options allow departments to choose the model that best fits their apparatus and operational requirements.
Features
• Designed for both negative pressure ventilation and positive pressure ventilation operations
• Available with durable steel or lightweight aluminum frame construction
• Patented 4-tip recurve aluminum blade provides maximum airflow and resists high heat better than plastic blades
• Precision-balanced blade improves airflow performance while reducing vibration
• Heavy-duty rubber feet provide stability and help keep the fan securely in place during operation
• Four integrated carry handles allow easy transport by one or two people
• Front and rear safety guards protect operators and internal components
• Available in 12", 16", 20", and 24" blade sizes
Specifications
• Manufacturer: Super Vac
• Product Type: Electric Smoke Ejector Fan
• Operation: Single-speed electric motor
• Ventilation Type: Negative pressure or positive pressure ventilation
• Frame Options: Steel or Aluminum (select models)
• Blade: Patented 4-tip recurve aluminum blade
• Blade Sizes: 12", 16", 20", 24"
• Motor Options:
• 12": 1/2 HP, 50/60Hz, 115/230V AC
• 16": 1/3 HP, 50/60Hz, 115/230V AC
• 20": 1 HP, 50/60Hz, 115/230V AC
• 24": 1-1/2 HP, 50/60Hz, 115/230V AC
• Airflow:
• 12": 3,700 CFM
• 16": 5,200 CFM
• 20": 9,800 CFM
• 24": Model dependent
• Available Models:
• P124S – 12" Steel
• P164S – 16" Steel
• P164S-AL – 16" Aluminum
• P200S – 20" Steel
• P200S-AL – 20" Aluminum
• P244S – 24" Steel
