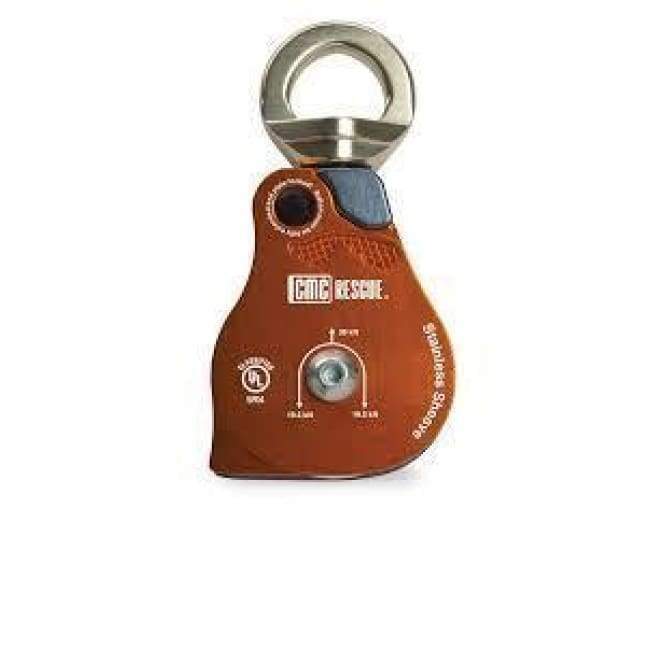

The 1.5" PMP SS Single Swivel Pulley combines a high-efficiency pulley and integrated swivel into a compact, durable device designed for rescue, rope access, work-at-height, and technical rigging applications. Its stainless steel sheave is compatible with both rescue rope and wire cable, making it a versatile solution for high anchors, tripods, redirects, hauling systems, and ascending operations.
Part of the CMC ProSwivel Pulley series developed in partnership with Rock Exotica, this pulley features a patented pivoting side plate that allows rope loading and unloading while the pulley remains attached to the anchor. The integrated swivel aligns automatically with the direction of pull, reducing rope twist while minimizing overall system length for increased travel and efficiency. Precision CNC-machined construction, sealed ball bearings, and a double-action detent locking mechanism provide exceptional durability, smooth operation, and reliable performance in demanding environments.
Features
• Integrated swivel and pulley design reduces overall system length and increases travel
• Stainless steel sheave compatible with both rescue rope and wire cable
• Patented pivoting side plate allows rope loading without disconnecting from the anchor
• Double-action detent button helps prevent accidental side plate opening
• Sealed ball bearing sheave delivers smooth, high-efficiency operation
• Rotating swivel automatically aligns with the direction of pull
• Swivel attachment accommodates rope, webbing, or carabiners
• Prusik-minding design supports progress capture systems
• Ergonomic shape allows easy one-handed anchoring and loading
• CNC-machined construction optimizes strength-to-weight ratio
• Compatible with ropes up to 13 mm (1/2 in) diameter
• Ideal for rescue, rope access, work-at-height, and tree care applications
• Patented design, time-tested performance, and made in the USA
Specifications
• Item Number: 300430
• Type: Single Sheave Swivel Pulley
• Sheave Material: Stainless Steel
• Weight: 331 g (11.7 oz)
• Dimensions: 148 x 76 mm (5.8 x 3.0 in)
• Sheave Tread Size: 1.5 x 0.5 in
• Color: Bronze / Slate
• NFPA Rating: General Use
• 3 Sigma MBS: 36 kN (8,093 lbf)
• Rope Compatibility: Up to 13 mm (1/2 in) diameter
• Cable Compatibility: Suitable for rope or wire cable applications
• Manufacturer: CMC Rescue
• Made in the USA
